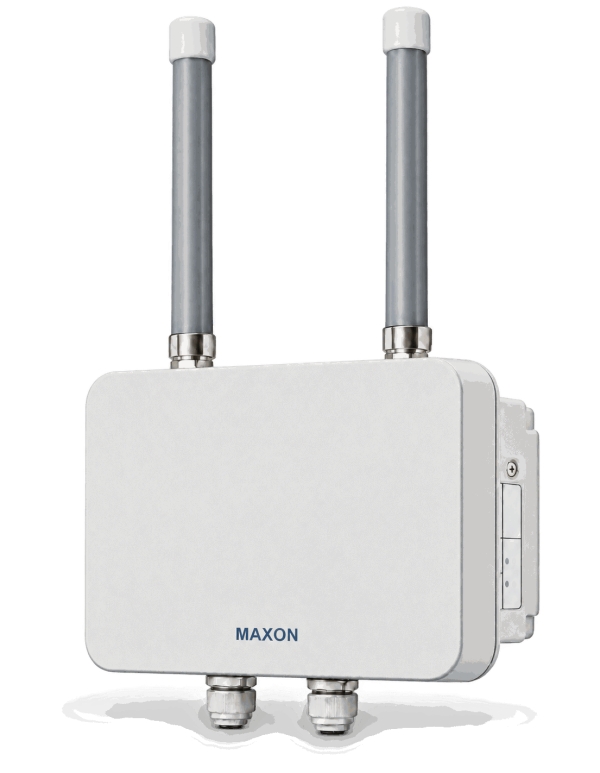

MXLink RT6000 Fix

MXLink RT6000 Fix


Category: Wireless PLC Communication


MXLink RT6000 Fix is an IP68-rated industrial real-time wireless terminal. It delivers 4 ms cyclic latency and zero packet loss for PROFINET & EtherNet/IP networks via dual-link redundancy and 48V PoE++. Perfect for rugged field and pole installations.
contact

Description

The MAXON MXLink RT6000 Fix is an IP68 industrial wireless Ethernet bridge for field-mounted PLC and remote I/O communication. It supports wireless PROFINET, EtherNet/IP, Modbus TCP and CC-Link IE through transparent Ethernet transport.

The RT6000 Fix combines dual-link duplicate transmission, PLC cycle learning, scheduled transmission and edge buffering for communication configured at a 4 ms cycle. A Gigabit RJ45 connection, Gigabit SFP interface and 48 V IEEE 802.3bt PoE++ input support field installation. Actual link performance depends on the topology, traffic and radio conditions.

Features

  • Transparent Ethernet transport without application-layer protocol conversion
  • Dual-link duplicate transmission, time-slot scheduling and edge buffering
  • Designed for industrial communication configured at a 4 ms cycle
  • PLC packet-cycle learning and scheduled transmission
  • IP68 enclosure for field-mounted installations
  • 48 V IEEE 802.3bt PoE++ input; Gigabit RJ45 and SFP interfaces
  • Operating temperature from -40 to +70 ℃

Hardware Specifications

Protection rating IP68
Dimensions (W x H x D) 262 x 194 x 72 mm
Net weight 1.68 kg (main unit)
Power input 48 V PoE++; IEEE 802.3bt
Maximum power <18 W
Ethernet interfaces 1 x 1 Gbps PoE Ethernet port; 1 x 1G SFP port (fiber/copper)
Data rate RJ45: 10/100/1000 Mbps auto-negotiation; Gigabit SFP
Network medium Shielded Cat5e or better twisted pair / optical fiber
Waterproof entry M25 PG waterproof cable glands (RJ45/SFP)
Indicators Power, 2.4 GHz status and 5 GHz status
Operating temperature -40 to +70 ℃
Storage temperature -40 to +85 ℃
Operating humidity 5% to 95% RH, non-condensing
Surge protection PoE: 4 kV common mode; 2 kV differential mode
ESD protection 6 kV contact; 8 kV air
Installation Pole mount (standard); ceiling/wall mount (optional)

Wireless and Real-Time Functions

Frequency bands 2.4 GHz: 2412-2472 MHz; 5 GHz: 5180-5320 / 5745-5825 MHz
Transport Industrial protocol optimization and cyclic packet handling
Industrial protocols PROFINET, EtherNet/IP and CC-Link IE
Application cycle Configured for a 4 ms communication cycle
Link redundancy Duplicate transmission over two links; select and deduplicate valid frames
PLC cycle scheduling PLC cyclic traffic learning and time-slot scheduling
Jitter mitigation Edge buffering and active compensation
Maximum TX power 24 +/- 2 dBm (2.4 GHz / 5 GHz)
Antenna / MIMO External 8 dBi dual-band omnidirectional antenna; 2 x 2 MIMO
Channel widths 20 / 40 / 80 MHz, depending on band and configuration
Communication distance Up to 100 m; depends on obstacles, EMI and installation
Management Watchdog, Syslog; Web / AC / SNMP
Deployment Paired units at controller and device sides

Typical Applications

  • Field-mounted PLC and remote I/O connections
  • Wireless Ethernet links for fixed production equipment
  • Crane and shuttle communication projects requiring site-specific validation

Installation note: Verify PoE equipment, cable entries, antenna placement and link performance under the expected operating conditions.

Request a Configuration Review: Send your PLC and I/O models, protocol and communication requirements to This email address is being protected from spambots. You need JavaScript enabled to view it..
