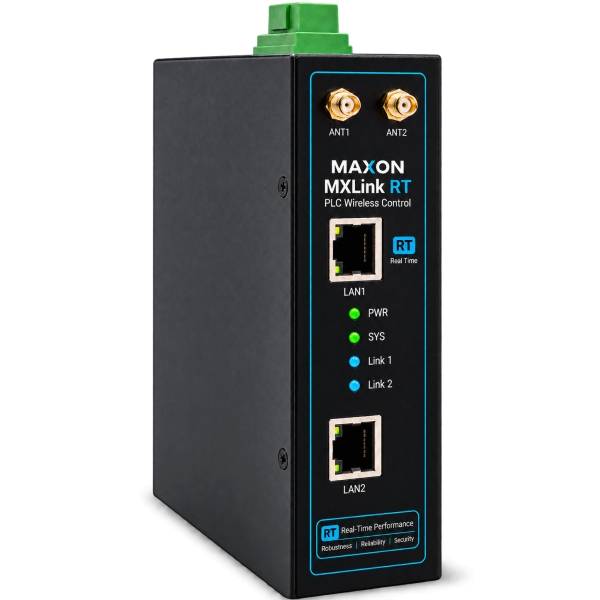

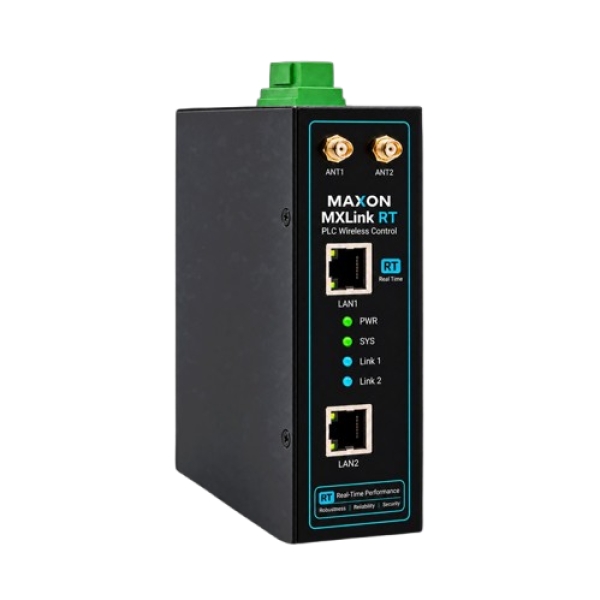

MXLink RT6000 RT is a compact DIN-rail wireless terminal for low-latency PLC loops. Supporting PROFINET & EtherNet/IP, it provides deterministic 4 ms cycles with zero packet loss.
contact

Description

The MAXON MXLink RT6000 RT is a DIN-rail industrial wireless Ethernet bridge for PLC and remote I/O communication. It supports wireless PROFINET, EtherNet/IP, Modbus TCP and CC-Link IE through transparent Ethernet transport.

The RT6000 RT combines dual-link duplicate transmission, TDD time-slot scheduling, PLC cycle learning and edge buffering for communication configured at 4 ms cycles. Its IP41 enclosure, two Gigabit RJ45 ports and external SMA antenna connections suit protected cabinet installations. Actual link performance depends on the topology, traffic and radio conditions.

P applications, document the configured I/O update time or requested packet interval, connection count and expected fault behavior. The product page's 4 ms cycle configuration describes an application setting; it is not a universal guarantee of end-to-end delay, zero packet loss or motion-control suitability.

Features

  • 2.4 GHz and 5 GHz wireless links with transparent Ethernet transport
  • Dual-link duplicate transmission with receive-side frame selection and deduplication
  • PLC cycle learning, TDD scheduling and edge buffering
  • Designed for industrial communication configured at 4 ms cycles
  • Two Gigabit RJ45 ports and external SMA antenna connections
  • IP41 DIN-rail enclosure; operating temperature from -40 to +70 ℃

Hardware Specifications

Item

Specification
Enclosure Compact DIN-rail enclosure | Independent DC supply | External antenna ports
Protection rating IP41
Housing (W x H x D) 39 x 136.8 x 127.3 mm
Power input DC 12 V terminal input; PoE not supported
Maximum power <18 W
Ethernet interfaces 2 x Gigabit RJ45; no SFP; PoE not supported
Data rate 10/100/1000 Mbps auto-negotiation
Network medium Shielded Cat5e or better twisted pair
Antenna ports 2 x external SMA connectors
Indicators / control Front-panel status LEDs and reset pinhole
Operating temperature -40 to +70℃
Storage temperature -40 to +85℃
Operating humidity 5% to 95% RH, non-condensing
ESD protection 6 kV contact; 8 kV air
Installation DIN-rail mounting
Enclosure Metal housing for protected industrial environments
Note Dimensions exclude protruding antennas, terminal blocks and mounting hardware.

Wireless and Real-Time Functions

Item

Specification
Frequency bands 2.4 GHz: 2412-2472 MHz; 5 GHz: 5180-5320 / 5745-5825 MHz
Transport Transparent industrial Ethernet with cyclic traffic recognition and scheduling
Industrial protocols PROFINET, EtherNet/IP, CC-Link IE and Modbus TCP
Application cycle Designed for industrial communication configured at 4 ms cycles
Link redundancy Dual-link duplicate transmission; select and deduplicate valid frames
PLC cycle scheduling Automatic PLC packet-cycle learning and TDD scheduling
Jitter mitigation Local edge buffering and active compensation
Maximum TX power 24 +/- 2 dBm (2.4 GHz / 5 GHz)
Antenna / MIMO External antenna; 2 x 2 MIMO; gain depends on selected antenna
Channel widths 20 / 40 / 80 MHz, depending on band and configuration
Communication distance Up to 100 m; depends on antenna, obstacles and EMI
Management Watchdog, Syslog; Web / AC / SNMP
Deployment Paired units at controller and device side

Typical Applications

  • PLC-to-remote-I/O links in protected industrial environments
  • Production-line wireless Ethernet connections
  • Rotating equipment and mobile workstation projects requiring application-specific validation

Installation note: Position external antennas clear of metal obstructions and validate the link with the intended PLC, remote I/O and communication settings.
