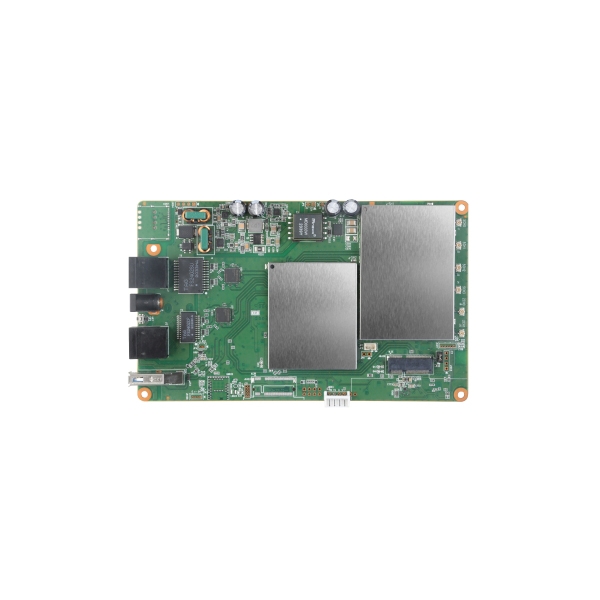

- IPQ6010 802.11ax wireless Motherboard Qualcomm chipset 2.4G & 5.8G DC12V 1.5A MX-650
IPQ6010 802.11ax wireless Motherboard Qualcomm chipset 2.4G & 5.8G DC12V 1.5A MX-650
IPQ6010 802.11ax wireless Motherboard Qualcomm chipset 2.4G & 5.8G DC12V 1.5A MX-650
Category: Industrial WiFi Motherboard
Datasheet SERIES PRODUCTS contact
Description
Maxon's MX-650 802.11ax Motherboard has the Qualcomm® IPQ6010 chip and supports IEEE 802.11 a, b, g, n, ac, ax standard protocol. It can work in temperatures of -45 ~ 70 ℃(-49 ~ 158℉).
Specification
| chip | Qualcomm IPQ6010 | |
| storage | 512MB DDR4 32MB NOR Flash 256MB NAND Flash |
|
| Protocol | IEEE 802.11 a, b, g, n, ac, ax | |
| spatial flow | 2.4GHz: 2x2:2 | 5GHz: 2x2:2 |
| rate | 802.11ax (2.4GHz): 573.5Mbps | 802.11ax (5GHz): 1200Mbps |
| bandwidth | 2.4GHz: 20/40 MHz | 5GHz: 20/40/80 MHz |
| Countries and regions Frequency range and working channel |
Taiwan 2.412 – 2.462 GHz; 11 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz;12 channels 5.745 – 5.825 GHz; 5 channels |
USA 2.412 – 2.462 GHz; 11 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz; 12 channels 5.745 – 5.825 GHz; 5 channels |
| EU 2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.700 GHz; 11 channels |
China 2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.745 – 5.825 GHz; 5 channels |
|
| Japan 2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.745 – 5.825 GHz; 5 channels |
India 2.412 – 2.472 GHz; 13 channels 5.180 – 5.320 GHz; 8 channels 5.500 – 5.720 GHz; 12 channels 5.745 – 5.865 GHz; 7 channels |
|
| *The working channel depends on the configured regulatory domain. | ||
| Modulation | DSSS (DBPSK, DQPSK, CCK) OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM) |
|
| maximum output power | 2.4GHz 23dBm (Single Chain) | 5GHz 23dBm (Single Chain) |
| *Maximum power settings are varied by channel and Country/Region's regulations. | ||
| Sensitivity | -82dBm (Min.) | |
| 2.4GHz HT20: -82dBm/HT40: -79dBm |
5GHz VHT20: -82dBm/ VHT40: -79dBm/ VHT80: -76dBm |
|
| Connector | 2xRJ45 supports 10/100/1000Mbps/2.5Gbps 1xUSB 3.0 port (software storage and console switch) 1xReset button / 1 x LED 1xPCI Express 3.0, M.2 E-key |
|
| Environmental Requirements | Storage Temperature: -45 ~ 70 ℃/-49 ~ 158℉ Humidity: 5 ~ 95% |
Operation Temperature: -45 ~ 55 ℃/-49 ~ 131℉ Humidity: 5 ~ 95% (non-condensing) |
| indicator | white (color) Stable: Connected to the Internet. Blinking: Unable to connect to the Internet. |
|
| power supply | Power consumption ≤ 18W |
Power input DC12V 1.5A |
| Bluetooth | Version 5.0 |
Frequency 2400 – 2480MHz |
| Compliance Standards | IEC/EN 62368-1 EN55032 & EN55024 WEEE & RoHS IEEE: IEEE 802.11a/b/g/n/ac/ax IEEE 802.11d, e, h, i, j, k, r, u, v time stamp, w, and z standards multimedia: Wi-Fi Multimedia (WMM) Safety: open system 802.1x WPA-PSK/WPA2-PSK WPA-Enterprise/WPA2-Enterprise/WPA3 Extensible Authentication Protocol (EAP) type: EAP-Transport Layer Security (TLS) EAP-Tunneled TLS (TTLS) Protected EAP (PEAP) EAP-Subscriber Identity Module (SIM) |
|
