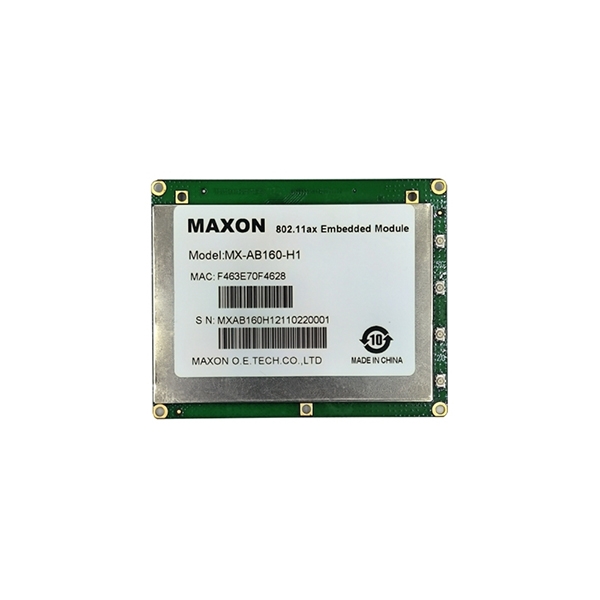

- IPQ6000 Wifi6 AP Board Qualcomm solutions Quad core ARM with Low Power Consumption MX-AB160-H1
IPQ6000 Wifi6 AP Board Qualcomm solutions Quad core ARM with Low Power Consumption MX-AB160-H1
IPQ6000 Wifi6 AP Board Qualcomm solutions Quad core ARM with Low Power Consumption MX-AB160-H1
Category: Industrial WiFi Motherboard
Datasheet SERIES PRODUCTS contact
Description
The MX-AB160-H1 is a complete smaller size 802.11a/b/g/n/ac/ax Wi-Fi6 solution optimized for low power, low cost and highly integrated APs.
The module is based on an integrated quad-core ARM Cortex-A7 710MHz CPU and externalled FEM dual-band 802.11a/b/g/n/ac/ax 2x2 MIMO MAC/BB/radio.
It supports 802.11 ax with up to 1700 Mbps for 80MHz.
Features
- Qualcomm® Atheros IPQ6000 quad-core ARM 64-bit A53 1.8GHz processor
- Physical data rate up to 573Mbps (2.4GHz) & 1201Mbps (5GHz)
- Support Dynamic Frequency Selection (DFS)
- DDR3 memory up to 4GB
- SPI NOR Flash up to 256Mb (32MB)
- Up to 256MB of NAND Flash
- 1*2.5G base-T, 1*2.5G SGMII
- High-speed mini PCIe v2.0 support
- USB 2.0/3.0 and MicroSD support
- Uart/GPIO/LED support
- Adopt 401-55101-51 high-speed connector
- RF output 2.4G&5.8G 4-way MMCX connector
Radio Frequency Parameters
| Radio Frequency Parameters (2.4GHz) | Rate | Transmit Power (per chain) | Transmit Power (dual chain) | Tolerance | Receive Sensitivity | Tolerance |
| 2.4GHz 802.11b | 1Mbps | 20dBm | 23dBm | ±2dB | -101dBm | ±2dB |
| 2Mbps | 20dBm | 23dBm | ±2dB | -99dBm | ±2dB | |
| 5.5Mbps | 20dBm | 23dBm | ±2dB | -97dBm | ±2dB | |
| 11Mbps | 20dBm | 23dBm | ±2dB | -94dBm | ±2dB | |
| 2.4GHz 802.11g | 6Mbps | 20dBm | 23dBm | ±2dB | -97dBm | ±2dB |
| 9Mbps | 20dBm | 23dBm | ±2dB | -95dBm | ±2dB | |
| 12Mbps | 20dBm | 23dBm | ±2dB | -92dBm | ±2dB | |
| 18Mbps | 20dBm | 23dBm | ±2dB | -90dBm | ±2dB | |
| 24Mbps | 20dBm | 23dBm | ±2dB | -87dBm | ±2dB | |
| 36Mbps | 20dBm | 23dBm | ±2dB | -85dBm | ±2dB | |
| 48Mbps | 20dBm | 23dBm | ±2dB | -83dBm | ±2dB | |
| 54Mbps | 20dBm | 23dBm | ±2dB | -81dBm | ±2dB | |
| 2.4GHz 802.11n HT20 | MCS0 | 20dBm | 23dBm | ±2dB | -96dBm | ±2dB |
| MCS1 | 20dBm | 23dBm | ±2dB | -94dBm | ±2dB | |
| MCS2 | 20dBm | 23dBm | ±2dB | -92dBm | ±2dB | |
| MCS3 | 20dBm | 23dBm | ±2dB | -90dBm | ±2dB | |
| MCS4 | 20dBm | 23dBm | ±2dB | -88dBm | ±2dB | |
| MCS5 | 20dBm | 23dBm | ±2dB | -86dBm | ±2dB | |
| MCS6 | 20dBm | 23dBm | ±2dB | -83dBm | ±2dB | |
| MCS7 | 19dBm | 22dBm | ±2dB | -80dBm | ±2dB | |
| 2.4GHz 802.11n HT40 | MCS0 | 20dBm | 23dBm | ±2dB | -94dBm | ±2dB |
| MCS1 | 20dBm | 23dBm | ±2dB | -92dBm | ±2dB | |
| MCS2 | 20dBm | 23dBm | ±2dB | -90dBm | ±2dB | |
| MCS3 | 20dBm | 23dBm | ±2dB | -88dBm | ±2dB | |
| MCS4 | 20dBm | 23dBm | ±2dB | -86dBm | ±2dB | |
| MCS5 | 20dBm | 23dBm | ±2dB | -83dBm | ±2dB | |
| MCS6 | 20dBm | 23dBm | ±2dB | -80dBm | ±2dB | |
| MCS7 | 19dBm | 22dBm | ±2dB | -77dBm | ±2dB |
