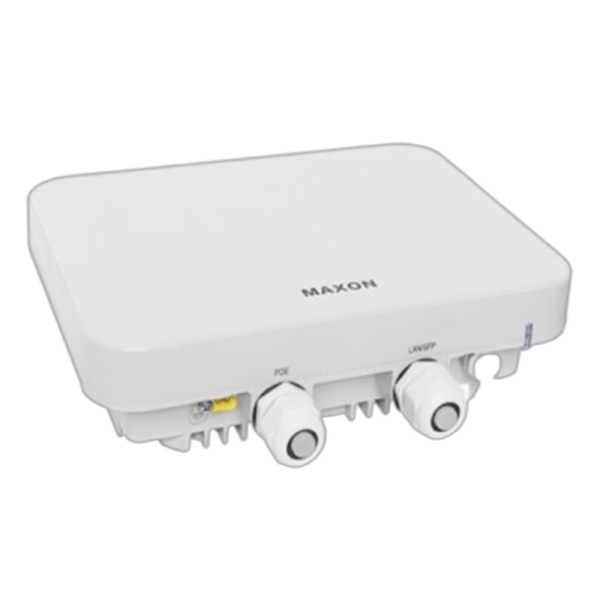

Industrial Wireless AP Outdoor 4G WiFi 6 CPE MX6422A-MI6

Description

MX6422A-MI6 is an industrial-grade high-speed 5G wireless router CPE that supports CAT12. It supports dual-band wireless with IEEE 802.11g/n/an/ac/ax protocol, and the theoretical max WiFi rate is 1773Mbps. Let users enjoy the high-speed and stable network by uplink cellular 4G access.

It has the feature of 2X2 MIMO high-power WiFi 6 with a coverage radius of 150m without blockage.

It uses 2.5Gbps electrical port uplink to ensure high-speed transmission; it uses the POE++ remote power supply to make network deployment easier. Supports multiple working modes of AP/Client to meet different application needs.

WIFI supports point-to-point and point-to-multipoint wireless relay bridging functions to achieve wireless coverage in areas where wiring is inconvenient; supports fat and fit AP mode, wireless positioning functions to meet the needs of smart wireless coverage in underground pipelines, factories, parks, etc. It also supports seamless roaming technology, automatically detects and switches seamlessly to let users roam without awareness of network switch within the network signal coverage.

The product structure design fully takes into account the application in harsh environments, and the design complies with IP68 standards, making it an ideal choice for industrial-grade Wi-Fi coverage equipment.

Features

• Support CAT12, LTE-FDD: Max.600(DL)/Max.150(UL) LTE-TDD: Max.430(DL)/Max.90(UL)
• Support IEEE 802.11g/b/an/ac/ax standard
• WIFI max throughput 573.5Mbps (Radio1 2.4G) & 1200Mbps
• Supports bridge and routing modes. Flexible deployment of network architecture can be achieved by adjusting the device network mode.
• Supports intelligent QoS, powerful packet identification, priority setting, priority scheduling functions, to achieve priority transfer of voice, video or designated packets
• Supports web management, making equipment installation and maintenance more convenient
• Support AC management to achieve remote centralized configuration and upgrade management
• Support 802.3bt protocol (POE++)
• Supports ceiling-mounted and pole-mounted installation, adapting to installation in different scenarios

Advantages

26dBm high power

The highest output can reach 26dBm, 6dBi antenna brings excellent Wi-Fi signal coverage radius up to 200m

CAT12

LTE-FDD: Max. 600 (DL)/Max. 150 (UL); LTE-TDD: Max. 430 (DL)/Max. 90 (UL)

Multiple installation

Flexible mounting design supports both ceiling and pole mounts

Protection Class IP68

Protection Class reaches to IP68, suitable for a variety of environments

2x2 & 4x4 MIMO

Supports 2x2 MIMO & 4x4 MIMO

High throughput

5G throughput up to 2Gbps WiFi up to 1773.5Mbps

Multiple choices

10G Optical & 2.5G Ethernet Port

Industrial Design

4-core Qualcomm CPU, large memory

Specification

(coming...)

Dimensions

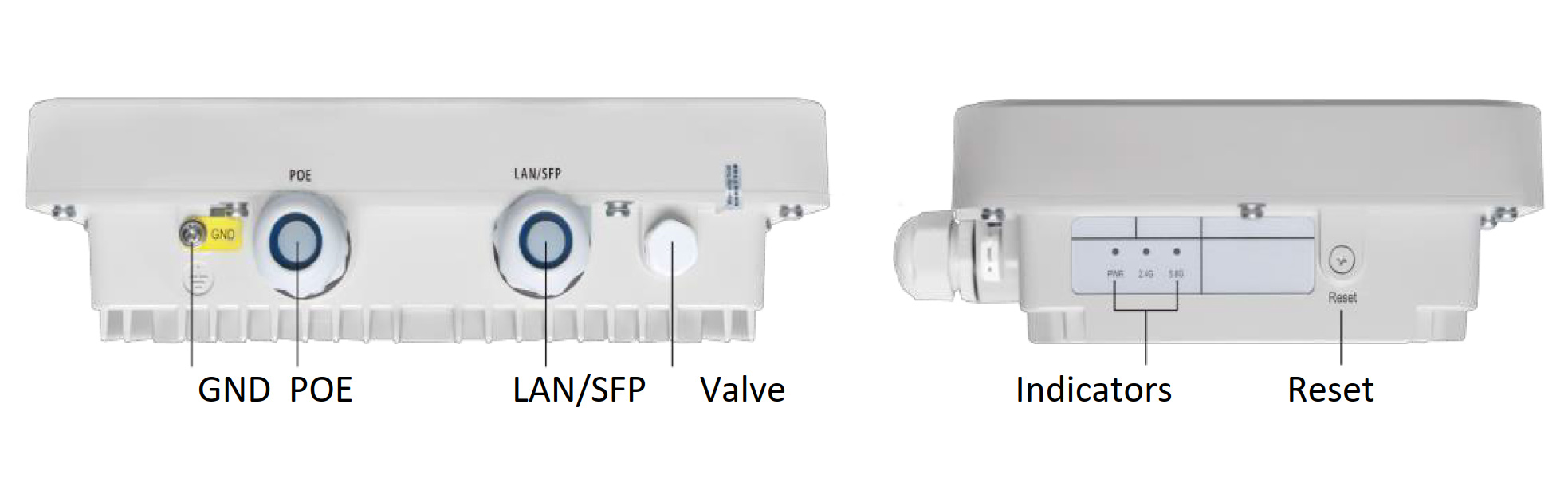

Connector

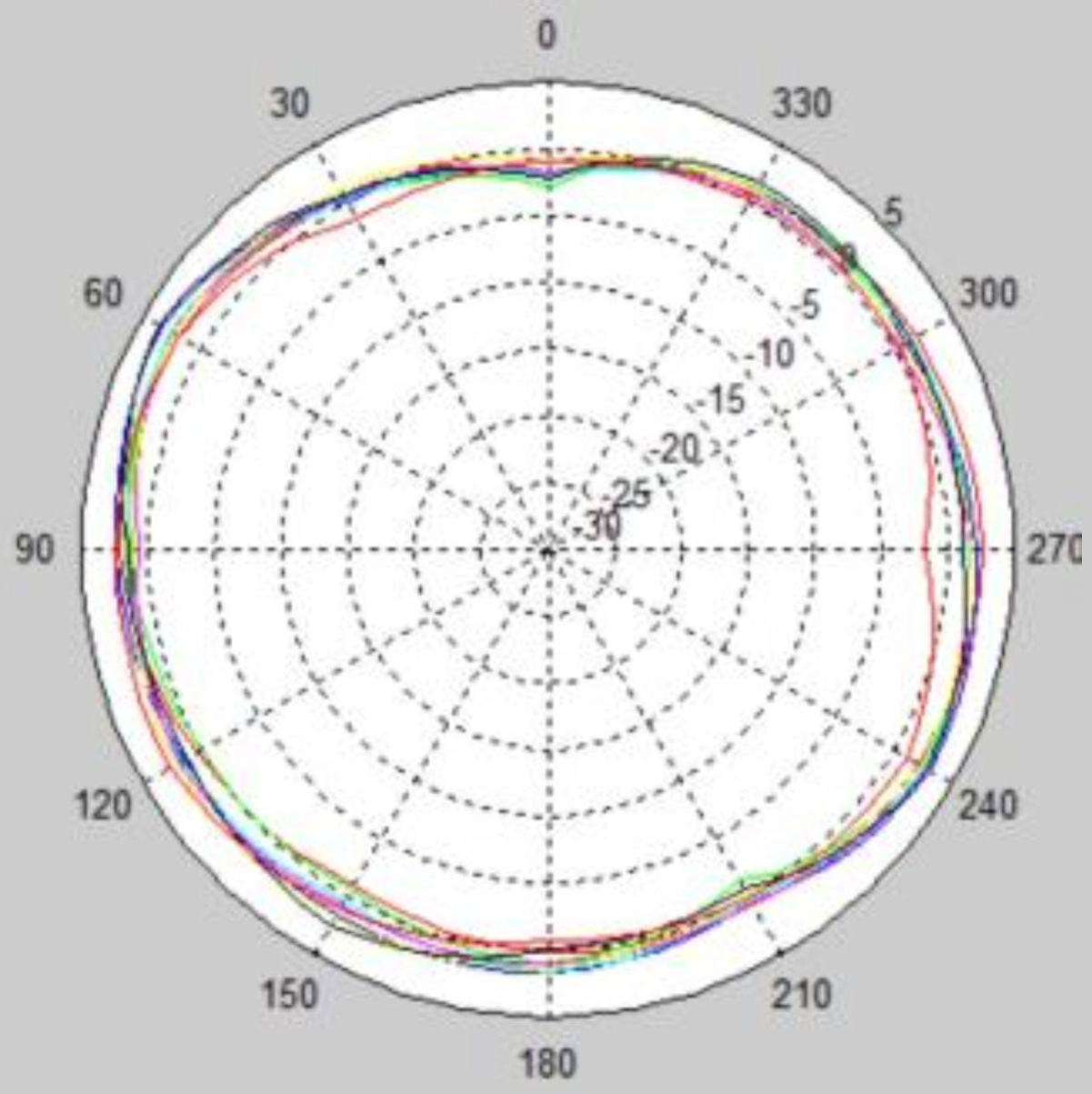

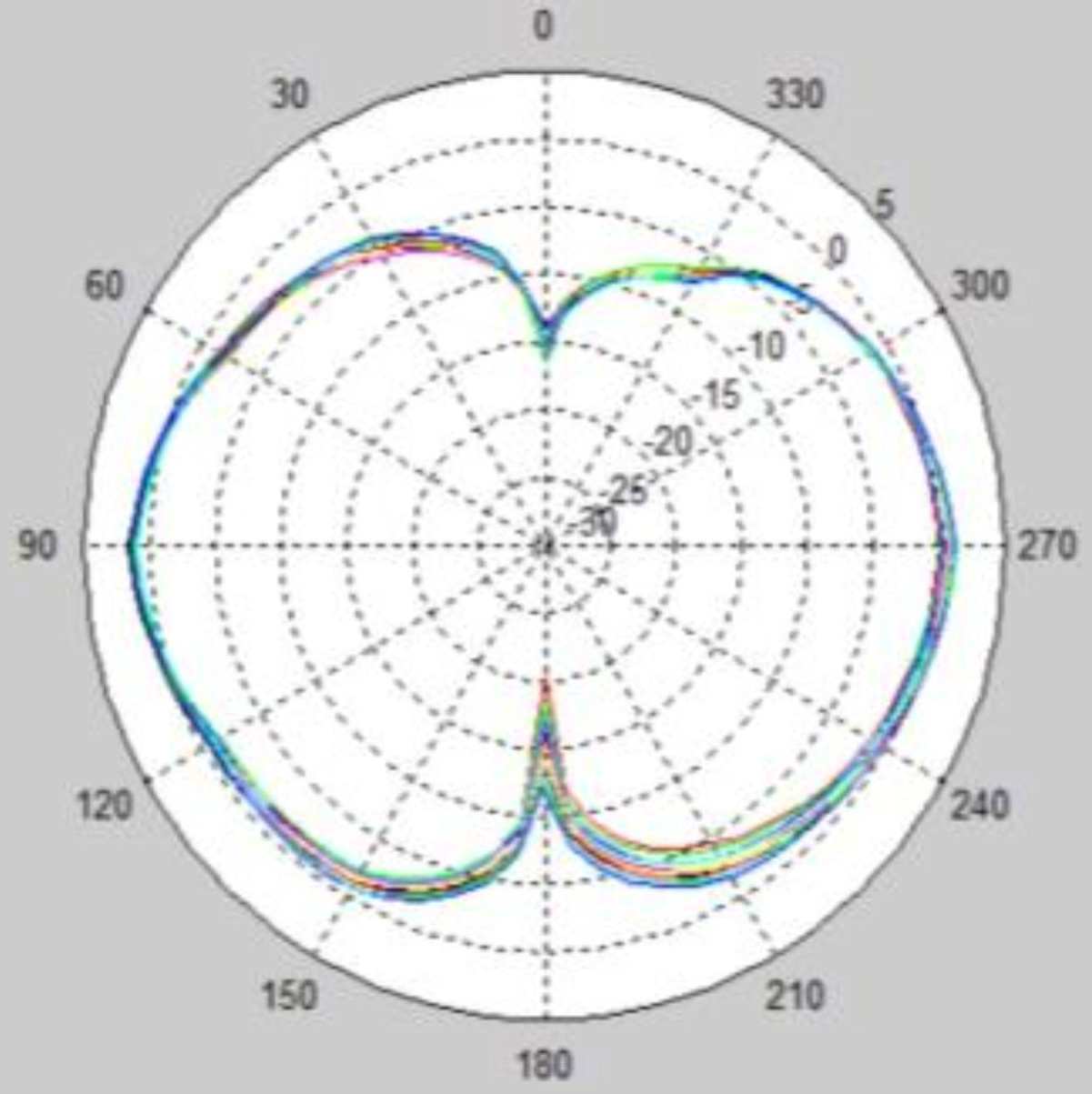

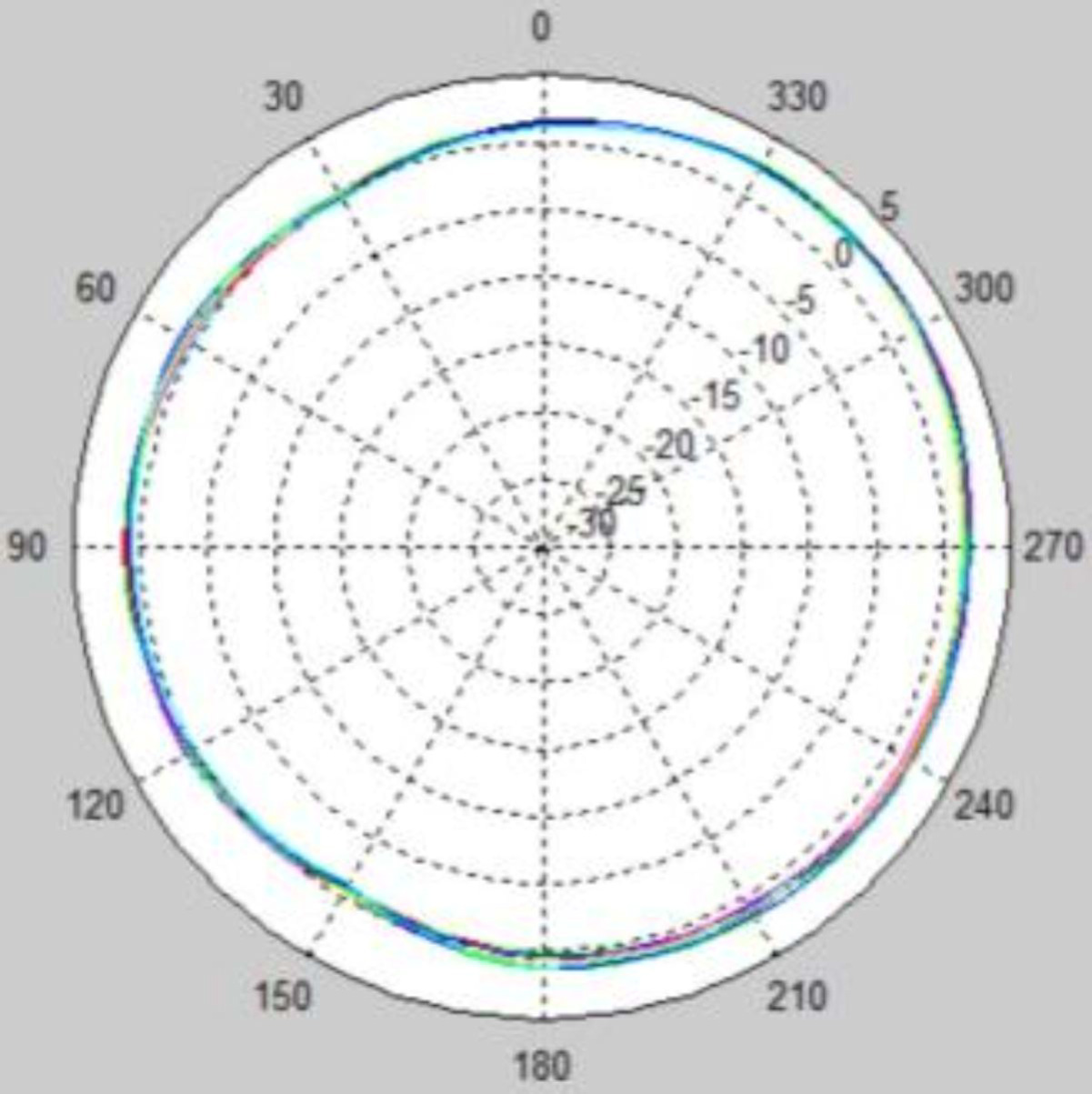

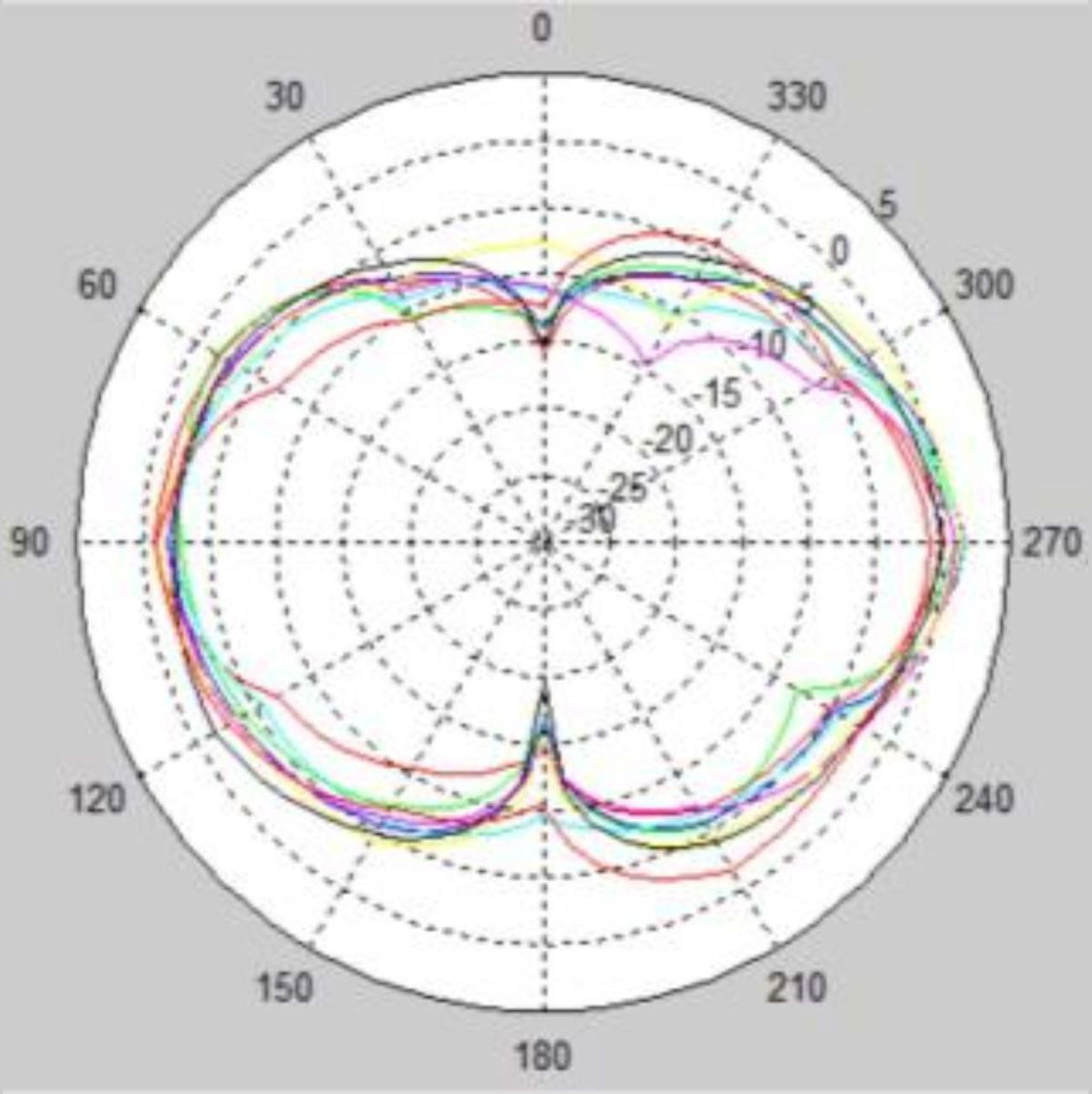

Antenna Radiation Pattern

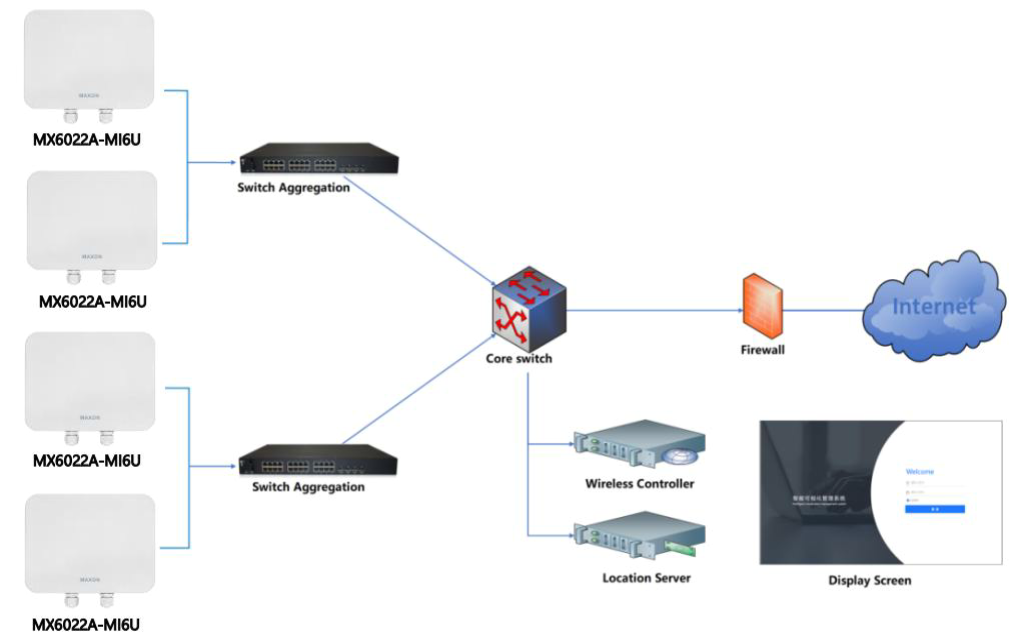

Application
