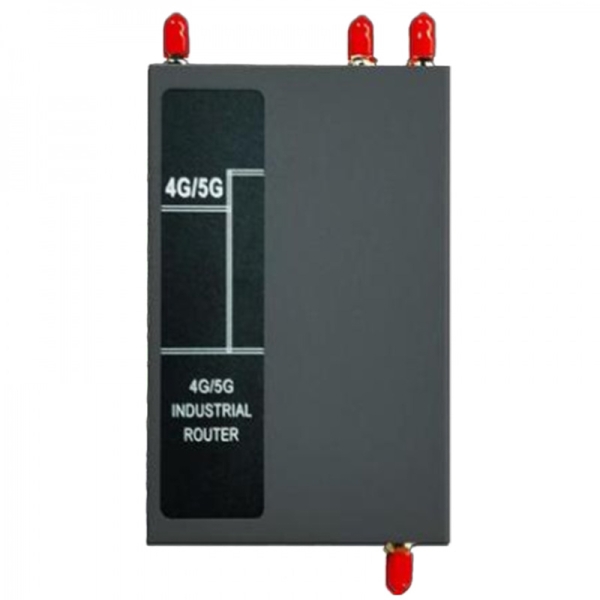

MX5041R 5G Industrial Wireless Router

Description

MX5041R industrial router uses industrial-grade materials, design, and technology to ensure robust communication under extreme conditions and strong interference conditions. The product provides RS-232 and RS-485 interfaces, 2 Gigabit Ethernet interfaces, and WiFi access. . It is an IoT gateway that supports a variety of local data access full-stack smart protocols. The device is loaded with WAN communication, VPN tunnel, WiFi LAN and other functions to realize seamless connection of wireless LAN, Ethernet, intelligent hardware and wireless WAN. Provide professional wireless communication guarantee for intelligent manufacturing, warehousing and logistics, transportation, electricity and other industries.

This product is widely used in smart power, transportation, finance, industrial automation, intelligent buildings, fire protection, public safety, environmental protection, meteorology, agriculture, forestry, water affairs, coal mining, petrochemical and other fields.

Features

• Supports multiple virtual networks VPN, VPDN, PPTP Client, L2TP Client
• Support domain name, IP access control, port mapping, DMZ host
• Network link backup, seamless switching between wired & 5G network
• oftware and hardware watchdog anti-crash design ensures stable and reliable operation of the equipment
• IEEE 802.11 b/g/n 2T2R wireless speed up to 300Mbps
• Support hardware NAT acceleration
• Wide voltage design: DC 6V～36V (POE version optional)
• Adapt to harsh industrial working environment at temperatures of -40~70℃

Advantages

Multiple Network

Supports network operators

High throughput

5G maximum transmission rate 2Gbps, WIFI 2.4G 300Mbps

Gigabit Ethernet

Supports Gigabit Ethernet

High stable WiFi

2.4G coverage, external high-gain antenna brings excellent WiFi signal

2x2 MIMO

Supports 2x2 MIMO standard

Wide voltage range

MWide voltage design, supports DC6V~36V (POE optional)

Easy Installation

Flexible installation design supports wall or rail installation

POE powered

Supports 100-meter Ethernet POE power supply, which is convenient for deployment and networking

Specification

(coming...)

Dimensions

Connector

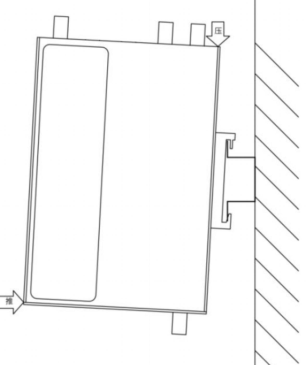

Installation

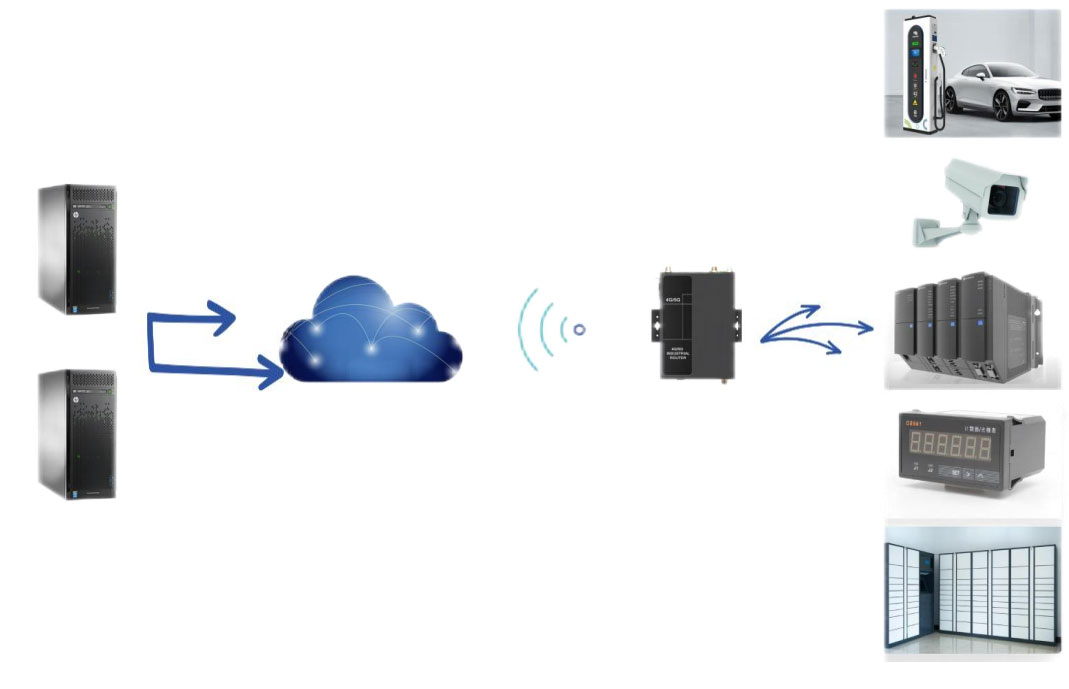

Application
