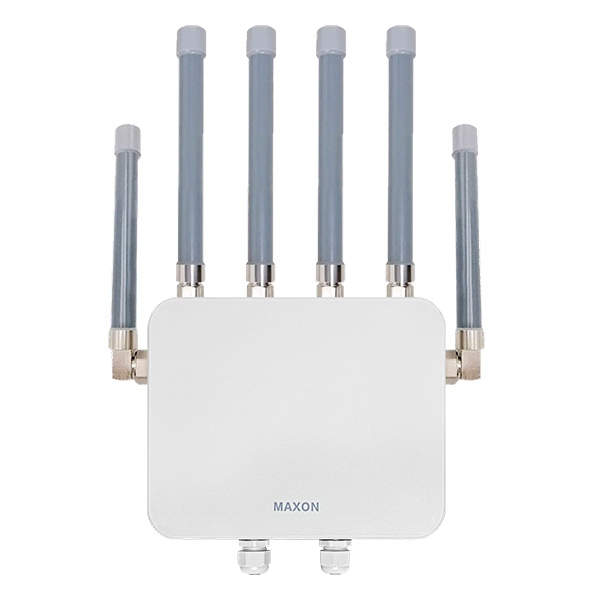

Industrial rugged Outdoor 5G WiFi 6 CPE wireless transfer MX6522A-ME8

Datasheet contact

Description

MX6522A-ME8 is an industrial-grade high-speed 5G wireless router CPE that supports 5G NR/NSR. It supports dual-band wireless with IEEE 802.11g/n/an/ac/ax protocol, and the theoretical max WiFi rate is 1773Mbps. Let users enjoy the high-speed and stable network by uplink cellular 5G access.

It has the feature of 2X2 MIMO high-power WiFi 6 with a coverage radius of 150-200 meters without blockage. It uses 2.5Gbps electrical port uplink to ensure high-speed transmission; it uses the POE++ remote power supply to make network deployment easier. Supports multiple working modes of AP/Client to meet different application needs.

WIFI supports point-to-point and point-to-multipoint wireless relay bridging functions to achieve wireless coverage in areas where wiring is inconvenient; supports fat and fit AP mode, wireless positioning functions to meet the needs of smart wireless coverage in underground pipelines, factories, parks, etc. It also supports seamless roaming technology, automatically detects and switches seamlessly to let users roam without awareness of network switch within the network signal coverage.

The product structure design fully takes into account the application in harsh environments, and the design complies with IP68 standards, making it an ideal choice for industrial-grade Wi-Fi coverage equipment.

Features

Support 5GNR/NSR. NR SA: 2000(DL) / 766(UL); LTE: 487(DL) /150(UL); WCDMA: 42(DL) / 11(UL)
Support IEEE 802.11g/B/an/ac/ax standard
WIFI max throughput 573.5Mbps (Radio1 2.4G) & 1200Mbps
Supports bridge and routing modes. Flexible deployment of network architecture can be achieved by adjusting the device network mode.
Supports intelligent QoS, powerful packet identification, priority setting, priority scheduling functions, to achieve priority transmission of voice, video, or designated packets to meet business needs
Supports web management, making equipment installation and maintenance more convenient
Support AC management to achieve remote centralized configuration and upgrade management
Support 802.3bt protocol (POE++)
Supports ceiling-mounted and pole-mounted installation, adapting to installation in different scenarios

Advantages

26dBm high power

The highest output power can reach 26dBm, external omnidirectional 8dBi antenna brings excellent Wi-Fi transmission with max. coverage radius up to 200m

5G

Support wireless probe function, docking with positioning server, which can meet the positioning requirements of smart underground pipeline and factory
