Profibus to Fiber Optic Converter(OLM)
Product Description

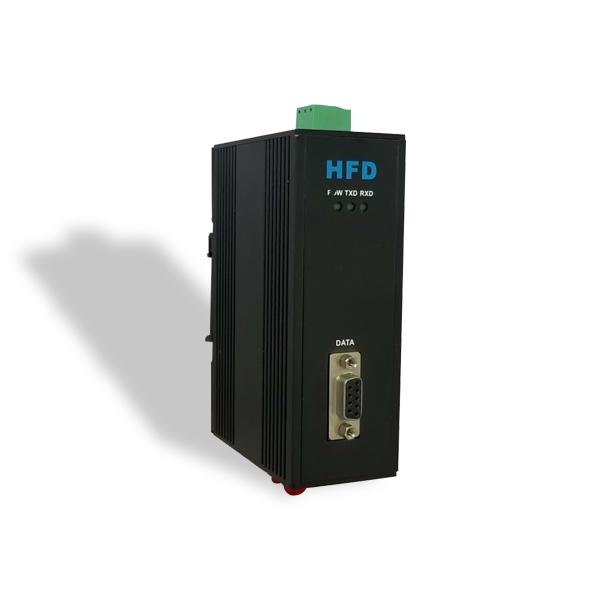

The HFD-FO-PRO series Profibus optical link module uses the most advanced digital technologies to provide excellent repeatable performance for today’s data systems. It supports transmission of one bi-directional data channel over one multimode or single mode optical fiber. Profibus standards are fully supported. The plug-and-play design ensures ease of installation with no electrical or optical adjustment needed. LED indicators are provided to show the operational status of the unit clearly. The series is available in compact wall mount or 2U chassis card.
The HFD Profibus converter is equipped with a multiple interface circuit that can handle Profibus serial interfaces and multi-mode or single- mode fiber. Profibus converters are used to extend serial transmission distance up to 2 km (multi-mode fiber) or up to 20-100km (single- mode fiber). .Auto Baud Rate Detection.The HFD Profibus Series incorporates a method for automatically detecting the serial signal baud rate by hardware. This is an extremely convenient feature for the user. Even if a device's baud rate is changed, the signal will still be transmitted through the Profibus to fiber converter without any problem.
Product Features
- Point to point/Multi-drop/Redundant ring topologies
- Multimode and single mode solutions
- Single or dual fiber solution
- Single or dual power supply solution
- Wall mount, rack or chassis configurations
- 5 years warranty

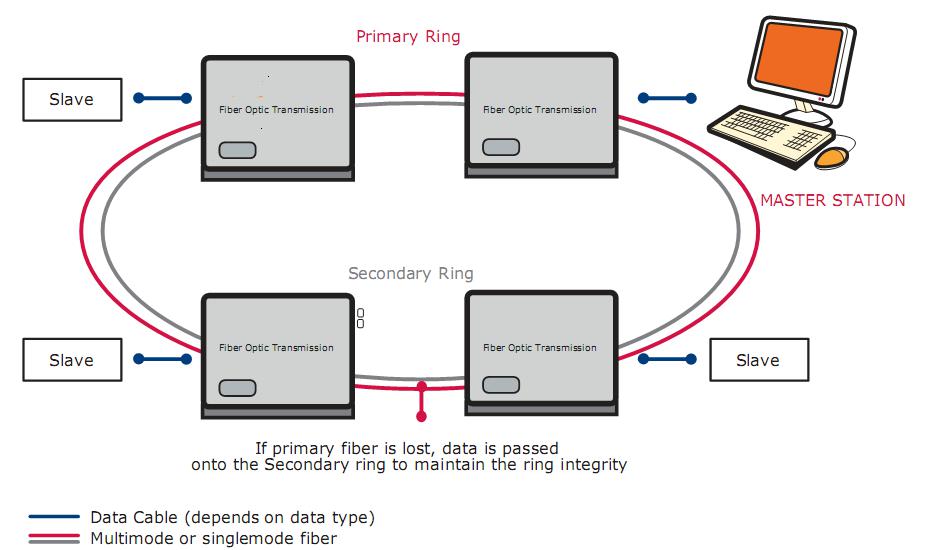

Typical System Configuration
Specifications：
|
Data |
|
|
Data Formats |
Siemens Profibus RS-485 |
|
Data Rate |
0~1.5Mb/3Mb/6M |
|
Bit Error Rate |
<1 x 10-12 |
|
Connectors |
|
|
Data |
DB9 or Terminal |
|
Fiber |
ST, SC or FC (ST fitted as standard) |
|
Environmental |
|
|
Operating Temperature |
-30C---+70C |
|
Storage Temperature |
-40C---+90C |
|
Operating Humidity |
0-95% |
|
MTBF |
>100,000 Hours |
|
Optical |
|
|
Fiber |
Multi mode or Single mode |
|
Wavelength |
MM:850nm,SM:1310nm |
|
Number of fibers |
2 or 1(WDM,Bi-Di) |
|
POWER |
|
|
Power Input |
AC 220V 110v or DC+110V,+5V,+12V,+24V,+48V Option |
|
Mechanical |
|
|
Dimensions |
40(W)×120(H)×90(D)mm DIN Rail |
Model Selection:
|
Model Number |
Description |
Fiber No. |
Fiber Mode |
Fiber Connector |
|
HFD-FO-PRO-P1M |
Point to point Link,Single Fiber(BI-DI), 2km |
1 |
Multi Mode |
ST/SC/FC |
|
HFD-FO-PRO-P2M |
Point to point Link,Dual Fiber, 2km |
2 |
Multi Mode |
ST/SC/FC |
|
HFD-FO-PRO-P1S |
Point to point Link,Single Fiber(BI-DI), 20km |
1 |
Single Mode |
ST/SC/FC |
|
HFD-FO-PRO-P2S |
Point to point Link,Dual Fiber, 20km |
2 |
Single Mode |
ST/SC/FC |
