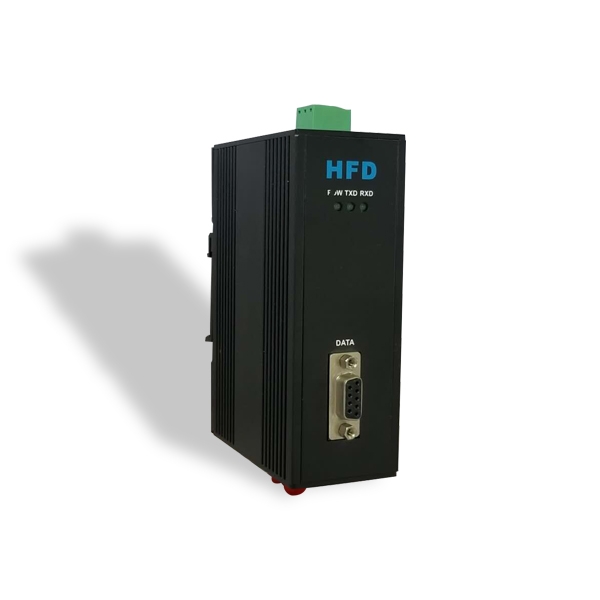

CAN Bus to fiber optic Converter
Product Description
The HFD CAN Bus series products provide an optical point-to-point or bus network connection for CAN bus data interfaces on one or two, multi-mode or single mode optical fibers. The CAN Bus Point-to-Point Transmission units operate as the end or terminal points and provide an electrical connection and a two fiber optical connection. The units support CAN 1.0 and CAN 2.0 CAN standards and Device Net.and are transparent to all high level protocols. This series is available in either wall mount, DIN rail or 3U chassis card configurations
Product Features
- Up to 1Mbps data rate
- Multi-mode and single mode
- Single fiber solution
- Single or dual redundant power supply
- Wall mount, rack or chassis configurations
- 5 years warranty

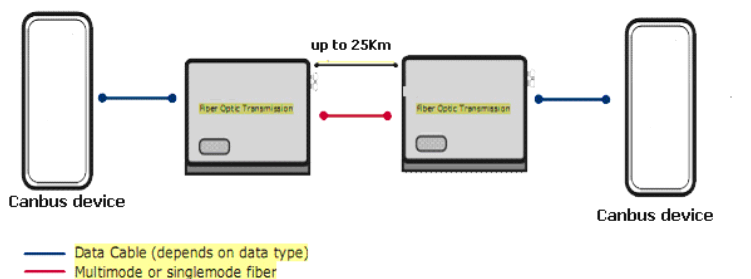

Typical System Configuration
Specifications：
|
Data |
|
|
Data Formats |
CAN1.0 ,CAN2.0 ,Device Net |
|
CAN Data Rate |
0-1Mbps |
|
Bit Error Rate |
<1 x 10-12 |
|
Connectors |
|
|
Data |
Screw Block Terminal or DB9 |
|
Fiber |
ST, SC or FC (ST fitted as standard) |
|
Environmental |
|
|
Operating Temperature |
-30C---+70C |
|
Storage Temperature |
-30C---+70C |
|
Operating Humidity |
0-95% |
|
MTBF |
>100,000 Hours |
|
Optical |
|
|
Fiber |
Single mode or Multi Mode |
|
Wavelength |
MM:850nm,SM:1310nm |
|
Number of fibers |
2 or 1 |
|
Power |
|
|
Power Input |
AC 220V 110v or DC+110V,+5V,+12V,+24V,+48V Option |
|
Mechanical |
|
|
Dimensions |
40(W)×120(H)×36(H) DIN Rail |
Model Selection:
|
Model Number |
Description |
Fiber No. |
Fiber Mode |
Fiber Connector |
|
HFD-FO-CAN-P1M |
Point to Point Link,Single Fiber(BI-DI), 2km |
1 |
Multi Mode |
ST/SC/FC |
|
HFD-FO-CAN-P2M |
Point to Point Link,Dual Fiber, 2km |
2 |
Multi Mode |
ST/SC/FC |
|
HFD-FO-CAN-P1S |
Point to Point Link,Single Fiber(BI-DI), 20km |
1 |
Single Mode |
ST/SC/FC |
|
HFD-FO-CAN-P2S |
Point to Point Link,Dual Fiber, 20km |
2 |
Single Mode |
ST/SC/FC |
