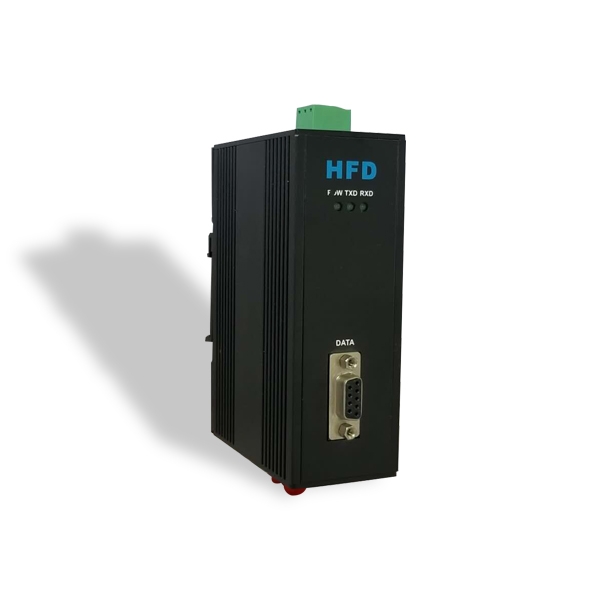

HFD-FO-PRO Series

Profibus Self-healing Ring Fiber Optic Modem

  20181228114440

Product Description

The HFD series Profibus Multi-Drop Self-Healing Ring Transmission series products provide an optical self-healing ring network for Profibus data interfaces over two multimode or single mode optical fibers. The system offers maximum reliability as it can recover simultaneous faults or failures in two different locations and has contact closure outputs on each module to clearly indicate any fault location. The self-healing ring consists of two opposing data paths, ring A and ring B. Under normal operation only the primary path (ring A) is used for data transfer. If a fault is detected, the data is transferred to the secondary path (ring B) without interruption to the communications network.

The series is available in wall mount, DIN rail or 2U chassis card.

Electromagnetic compatibility (EMC)
Limit class B (EN 55022)
EN 61000-4-2
EN 61000-4-3)
Burst: On power supply lines and shielded RS 485 bus lines: ± 2 kV (EN 61000-4-4)
Surge: Power lines: ± 1 kV symmetrical, Shielded RS 485 lines: ± 2 kV asymmetrical (EN 61000-4-5)

Product Features

  • Point to point/Multi-drop/Redundant ring topologies
  • Multimode and single mode solutions
  • Single or dual fiber solution
  • Single or dual power supply solution
  • Wall mount, rack or chassis configurations
  • 5 years warranty

Typical System Configuration

2





Data

Data Formats

Siemens Profibus RS-485

Data Rate

0~1.5Mb

Bit Error Rate

<1 x 10-12

Connectors

Data

DB9 or Terminal

Fiber

ST, SC or FC (ST fitted as standard)

Environmental

Operating Temperature

-30C---+70C

Storage Temperature

-40C---+90C

Operating Humidity

0-95%

MTBF

>100,000 Hours

Optical

Fiber

Multi mode or Single mode

Wavelength

MM:850nm,SM:1310nm

Number of fibers

2 or 4(WDM,Bi-Di)

POWER

Power Input

AC 220V 110v or DC+110V,+5V,+12V,+24V,+48V Option

Mechanical

Dimensions

40(W)×120(H)×90(D)mm DIN Rail





Model Number

Description

Fiber No.

Fiber Mode

Fiber Connector

HFD-FO-PRO-R2M

Redundant Ring Link,Dual Fiber(BI-DI), 2km

2

Multi Mode

ST/SC/FC

HFD-FO-PRO-R4M

Redundant Ring Link,4 Fiber, 2km

4

Multi Mode

ST/SC/FC

HFD-FO-PRO-R2S

Redundant Ring,Dual Fiber(BI-DI), 20km

2

Single Mode

ST/SC/FC

HFD-FO-PRO-R4S

Redundant Ring,4 Fiber, 20km

4

Single Mode

ST/SC/FC
