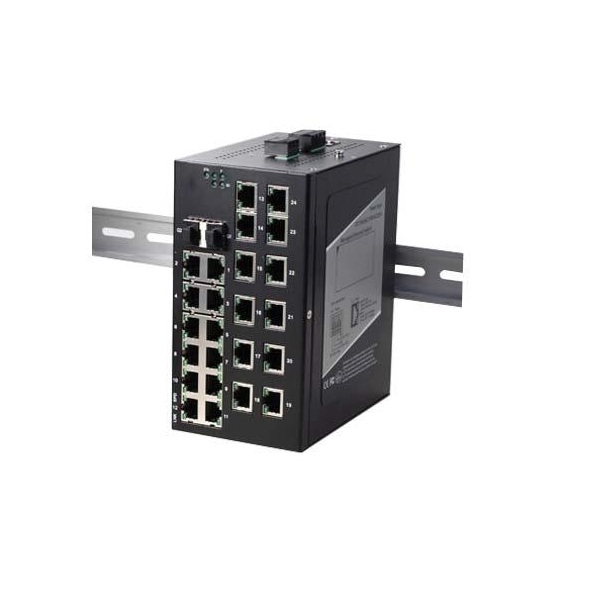

Managed DIN-rail Gigabit Industrial Ethernet Switches MXB10M-2G Series

Descripion

Up to 4 Gigabit Ports

RingOn™ Redundant Ring Technology, Recovery Time within 15ms, Supports RSTP/STP

Enriched Management Features: QoS, IGMP snooping/ GMRP, VLAN, SNMP V1/V2/V3

Multiple Redundant AC/DC Power Choices

Specifications

Technology

Network Standards: IEEE802.3 10Base-T

IEEE802.3u 100BaseT(X) and 100BaseFX

IEEE802.3ad 1000Base(X)

IEEE802.3z 1000BaseSX/LX/HLX/ZX

IEEE802.3x Flow Control

IEEE802.1p Classe of Service

IEEE802.1Q VLAN Tagging

IEEE802.1ad LACP

IEEE802.1D for Spanning Tree Protocol

IEEE802.1W for Rapid STP

IEEE802.3X for Authentication

Broadcasting Storm Control:Automatic

Processing Type:Store and Forward

Management:by Web Browser

RingOn™:Recovery Time within 15ms

Flow Control:Full/Half Duplex Back Pressure Flow Control

Protocols:SNMP V1/V2/V3, DHCP Server, SNTP, SMTP, IGMP Snooping/GMRP, LACP, RMON,

HTTPS, Telnet, Syslog, HTTP

Switch Properties

Priority Queues:4

IGMP Groups:64

Max. Available VLANs:256

VLAN ID Range:1~4096

Interface

RJ45 Port Connectors:10/100Base(X) or 10/

100/1000BaseT(X) Auto-Negotiation

Fiber Port Connectors:1000BaseSX/CX/LHX

/ZX(SFP slots, LC connectors)

LED Indicators:Power, Port Status, 10/100/1000M Console Port:DB9 male

Output Warning:Relay, Standard 2 Pin,

0.5A@24VDC

Power Requirements

Low Voltage Range:12~36VDC; 10~24VAC

High Voltage Range:200~350VDC; 165~265VAC

Connection:Standard 4 Pin Dual Power Connector

Optical Fiber

Physical

Case:Slim Metal Case, IP40 Design

Dimensions:(W×H×D): HFB10M-2G:89×144×125mm

HFB18M-2G:70×149×130mm

HFB28M-4G:91×166×130mm

DIN Rail or Panel Mounting

Environment Limits

Standard Temp Models:-10 to 60˚C

Extended Temp Models:-40 to 75˚C

Storage Temperature:-40 to 85˚C

Ambient Relative Humidity: 10 to 95% (Non-condensing)

Agency Approvals

EMI:FCC Part15, CISPR(EN55022) Class A EMS:

EN61000-4-2(ESD), Lv3

EN61000-4-3(RS), Lv3

EN61000-4-4(EFT), Lv3

EN61000-4-5(Surge), Lv3
