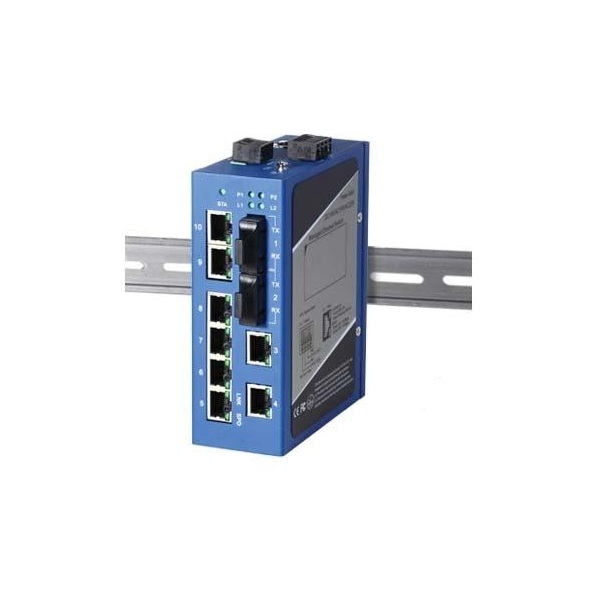

Managed DIN-rail 10/100M Industrial Ethernet Switches MXB8M Series

Description

RingOn™ Redundant Ring Technology, Recovery Time within 15ms, Supports RSTP/STP

Enriched Management Features: QoS, IGMP snooping/ GMRP,VLAN, SNMP V1/V2/V3

Multiple Redundant AC/DC Power Choices

Upgrated EMI Immunity

Specifications

Network Standards: IEEE802.3 10Base-T

IEEE802.3u 100BaseT(X), 100BaseFX IEEE802.3x Flow Control

IEEE802.1p Classe of Service IEEE802.1Q VLAN Tagging IEEE802.1ad LACP

Processing Type:Store and Forward

MAC Address:8k MAC Address Table

Management:by Web Browser

RingOn™:Recovery Time within 15ms

Broadcasting Storm Control:Automatic

Flow Control:Full/Half Duplex Back Pressure Flow Control

Protocols:SNMP V1/V2/V3, DHCP Server, SNTP, SMTP, IGMP Snooping/GMRP, LACP, RMON, HTTPS, Telnet, Syslog, HTTP

Interface

RJ45 Port Connectors:10/100Base

Auto-sensing, Full/Half Duplex MDI/MDI-X Auto-Negotiation

Fiber Port Connectors:100BaseFX, SC or ST

connectors, Single-Mode or Multi-Mode LED Indicators:Power, Port Status Console Port:DB9 male

Output Warning:Relay, Standard 2 Pin,

0.5A@24VDC

Switch Properties

Priority Queues:4

IGMP Groups:64

Max. Available VLANs:256

VLAN ID Range:1~4096

Power Requirements

Low Voltage Range:12~36VDC; 10~24VAC

High Voltage Range:200~350VDC; 165~265VAC

Connection:Standard 4 Pin Dual Power Connector

Optical Fiber

Physical Characteristics

Case:Slim Metal Case, IP40 Design

Dimensions:(W×H×D):

MXB8M:49×139×115mm

MXB16M:70×149×130mm

MXB24M:91×149×130mm

DIN Rail or Panel Mounting

Environment Limits

Standard Temp Models:-10˚C to 60˚C

Extended Temp Models:-40˚C to 75˚C

Storage Temperature:-40 to 85˚C

Ambient Relative Humidity: 10 to 95% (Non-condensing)

Agency Approvals

EMI:FCC Part15, CISPR(EN55022) Class A EMS:

EN61000-4-2(ESD), Lv3

EN61000-4-3(RS), Lv3

EN61000-4-4(EFT), Lv3

EN61000-4-5(Surge), Lv3
