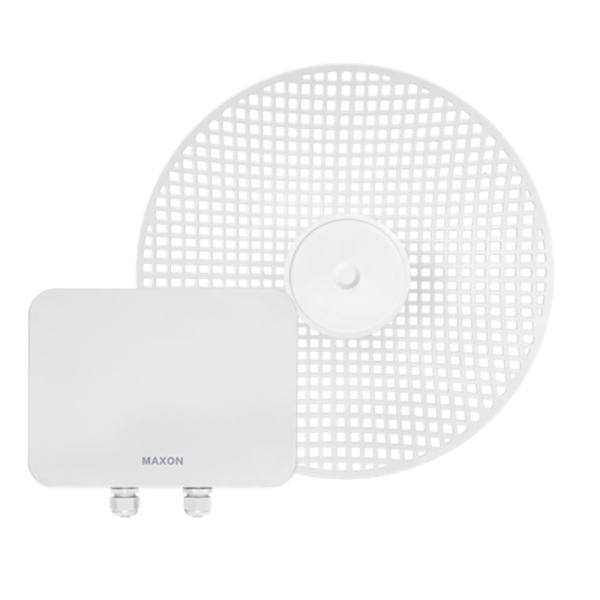

Outdoor Wireless WiFi 5 PTP Bridge High antenna gain 20km~50km Long-distance MX5011B-DE29
Outdoor Wireless WiFi 5 PTP Bridge High antenna gain 20km~50km Long-distance MX5011B-DE29
Category: Industrial IP68 Outdoor Wireless Bridge
Datasheet SERIES PRODUCTS contact
Description
MX5011B-DE29 Outdoor 802.11ac Wireless Bridge (20km) supports the 802.11a/n/ac protocol, with a maximum rate of 867Mbps, optimizing the use of bandwidth and Internet speed. It can support WDS access point/WDS client working mode to meet different application requirements. It can support SFP optical port access while supporting Gigabit Ethernet port, which is flexibly applicable to different network access plans.
It can provide customers with a stable wireless signal transfer and ensure the good experience of stable, high-quality and convenient network services. It also incorporates several leading core achievements to make sure stable, reliable coverage and high-throughput performance in all scenes. Its structural design fully considers the applications in extreme industrial environments and is designed to meet the IP68 waterproof standard, making it an ideal choice for industrial-grade Wi-Fi coverage equipment.
Features
- Support IEEE 802.11a/n/ac standard
- Maximum transfer rate 867Mbps
- Support intelligent QoS function, realize voice, video, and text's priority transmission through powerful text recognition, priority setting, and priority scheduling functions to meet various business needs
- The system supports dual firmware switching between master and backup version, automatic synchronization backup of both parts, automatic detect & switch system failures function to enhance equipment stability and
- realizing automatic recovery from system failures
- Support web management, making equipment installation and maintenance more convenient
- Support 802.3af Protocol (POE)
- Support pole-mounted installationing, horizontal and vertical position adjustable
- Support Gigabit Ethernet port/SFP, adapt to multiple types of network access
- IP68 waterproof level is suitable for a variety of environments
- *Wireless controller needs to be purchased separately
Specification
| Hardware | |
| Shell | metal + PC |
| Host size (mm) | 262mm*194mm*72mm |
| Net weight (kg) | 1450g |
| Installation | pole-mounted |
| Waterproof | IP68 |
| Antenna size | Φ600mm |
| Antenna Gain | 29dBi |
| Antenna type | built-in directional antenna |
| Transmission distance | 0～20km |
| Power supply mode | 48V 0.5A POE |
| Maximum power consumption (W) | 12W |
| Maximum transmit power | 27dBm |
| Connector (WAN) | 10/100/1000Mbps |
| Connector (LAN) | 10/100/1000Mbps or 1000Mbps SFP |
| Button | 1*Reset |
| Indicator | 1*POWER, 1*system, 1*5.8G working |
| Working temperature | -40℃~70℃/-40~158℉ |
| Storage temperature | -40℃~85℃/-40~185℉ |
| Working humidity | 5%~95%RH non-condensing |
| Surge immunity | POE/GE: common mode 4KV, differential mode 2KV |
| Electrostatic discharge immunity | Contact discharge: 6KV, Air discharge:8KV |
| Mounting kit 1 | 2 x RJ45 M25 PG waterproof connector (optional SFP waterproof connector) |
| Mounting kit 2 | 1 x Ceiling Mount Kit |
| Mounting kit 3 | 1 x 48V 0.5A POE Adapter |
| Mounting kit 4 | 1 x AC Power Cord |
| Mounting kit 5 | 1 x Product Instruction Manual |
| Mounting kit 6 | 1 x Product Certificate & Warranty Card |
| Software | |
| Working Protocol | 802.11 a/n/ac |
| Maximum speed | 867Mbps |
| Frequency range | 5180~5320MHz, 5745~5825MHz |
| Channel width | 20/40/80MHz |
| Working Mode | WDS Access Point, WDS Client |
| Security Configuration | WPA2-PSK, Hidden SSID, IP/MAC Filtering |
| Application Mode | WDS Access Point, WDS Client |
| Configuration management | support web configuration, support AC remote management, support SNMP management |
| Ethernet software features | support IPv4/IPv6 dual protocol stack;DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMP v2c/v3, Syslog, TCP/IP, SSH, UDP, VLAN |
| Dynamic frequency selection | support intelligent channel analysis & automatic optimal channel selection;support 5GHz DFS |
| Intelligent Bandwidth Rate Limiting | Support IP and MAC-based upstream and downstream rate limiting |
| IoT expansion | reserved UART interface to support IoT application expansion such as Bluetooth, ZigBee, UWB, etc. |
| Others | Scheduled restart, QoS, Watchdog |
| Application scenarios 1 | wireless video surveillance (traffic, urban, public security, oil and gas pipelines, forest fire prevention and security, residential and other key areas monitoring) |
| Application scenarios 2 | Wireless video/data transmission and wireless coverage in railway, transportation, power and other industries |
| Application scenarios 3 | Operator Main Wireless Network Construction |
| Application scenarios 4 | Wireless network coverage of rural informatization construction |
Dimensions
Connector
Antenna Radiation Pattern
