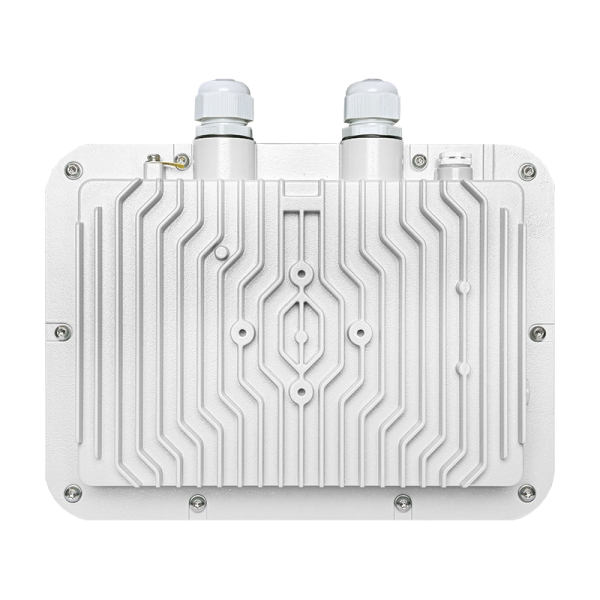

MX5012A-MI6 Wireless WiFi5 Access Point(100m)

MX5012A-MI6 Wireless WiFi5 Access Point(100m)


Category: Industrial Wireless Access Point


Datasheet SERIES PRODUCTS contact

Description

MX5012A-MI6 Dual-Band Industrial Wireless Access Point supports IEEE 802.11a/b/g/n/ac protocol, with a maximum transmission rate of 300Mbps (2.4G) & 867Mbps (5.8G), supports the wireless bridge and routing modes. It can flexibly deploy the network by adjusting the device network mode.

Features

  • Support IEEE 802.11a/b/g/n/ac
  • Maximum transfer rate 300Mbps (2.4G) & 867Mbps (5.8G)
  • Support wireless bridge and routing modes, which can flexibly deploy the network by adjusting the device network mode
  • Support intelligent QoS function, realize voice, video, and text's priority transmission through powerful text recognition, priority setting, and priority scheduling functions to meet various business needs
  • The system supports dual firmware switching between master and backup version, automatic synchronization backup of both parts, automatic detect & switch system failures function to enhance equipment stability and
  • realizing automatic recovery from system failures
  • Support web management, making equipment installation and maintenance more convenient
  • Support wireless controller (AC) management, realize remote centralized configuration and upgrade management
  • Support 802.3af Protocol (POE)
  • Support ceiling-mounted and pole-mounted installation, suitable for installation in different area
  • Support Gigabit Ethernet port/SFP, adapt to multiple types of network access
  • The IP68 waterproof level ensure it can be suitable for a variety of environments
  • *Wireless controller needs to be purchased separately

Specification

Hardware
Shell  Metal+PC
Host size (mm)  262*194*72mm
Net weight (kg)  1450g
Installation method  ceiling installation (standard), pole-mounted installation (optional)
Waterproof  IP68
Antenna Gain  2.4G: 6dBi 5.8G: 6dBi
Antenna Type  dual-band omnidirectional built-in antenna
Power supply  48V 0.5A POE
Maximum power consumption  12W
Maximum transmit power  2.4G: 25dBm; 5.8G: 24dBm
Connector (WAN)  10/100/1000Mbps
Connector (LAN)  10/100/1000Mbps or 1000Mbps SFP
Key  1*Reset
Indicator  1*power, 1*system, 1*2.4G, 1*5.8G
Working temperature  -40℃~70℃/-40~158℉
Storage temperature  -40℃~85℃/-40~185℉
Working humidity  5%~95%RH non-condensing
Surge immunity  POE/GE: common mode 4KV, differential mode 2KV
Electrostatic discharge immunity  Contact discharge: 6KV, Air discharge: 8KV
Mounting kit  2 x RJ45 M25 PG waterproof connector (optional SFP waterproof connector)
1 x Ceiling Mount Kit
1 x 48V 0.5A POE Adapter
1 x AC Power Cord
1 x Product Instruction Manual
1 x Product Certificate & Warranty Card
Software
Protocol 802.11a/b/g/n/ac
Maximum speed 1167Mbps (2.4G 300Mbps +5.8G 867Mbps)
Frequency range 2.4G: 2412~2472MHz;5.8G:5180~5320MHz, 5745~5825MHz
Channel width 20/40/80MHz
Working Mode Access Point, Client, WDS Access Point, WDS Client
Security Configuration WPA2-PSK, Hidden SSID, IP/MAC Filtering
Application mode AP, Client
Configuration management support web configuration, support AC remote management, support SNMP management
Ethernet software features support IPv4/IPv6 dual protocol stack;DHCP Server/Client, DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMP v2c/v3, Syslog, TCP/IP, SSH, UDP, VLAN
Roaming Seamless roaming based on 802.11r
Dynamic frequency selection support intelligent channel analysis & automatic optimal channel selection;Support 5GHz DFS
Intelligent Bandwidth Rate Limiting Support IP and MAC-based upstream and downstream rate limiting
IoT expansion reserved UART connector to support IoT application expansion such as Bluetooth, ZigBee, UWB, etc.
Positioning service supports wireless probe function, docking with positioning server, which can meet the positioning requirements in scenarios such as smart underground pipelines and smart factories
Others Scheduled restart, VLAN, QoS, Watchdog
Application smart factories, enterprises, underground pipelines, industrial parks, scenic spot, education campus, digital warehouse wireless coverage

Dimensions

MX6022A-ME8 dimensions

Connector

connector

Antenna Radiation Pattern

Antenna Radiation Pattern

Antenna Radiation Pattern
