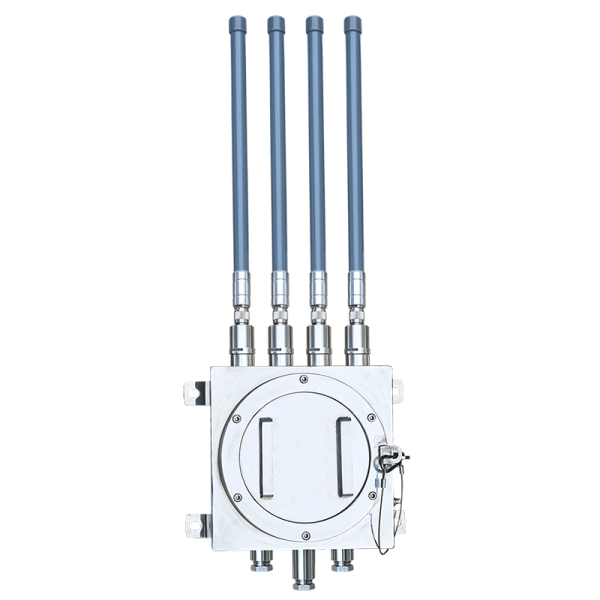

MX944-1D Industrial Explosion-proof 5G Router Exd IIC T6 Gb/Ex tD A21 IP68 T80℃
MX944-1D Industrial Explosion-proof 5G Router Exd IIC T6 Gb/Ex tD A21 IP68 T80℃
Category: Explosion Proof 4G/5G Router
Datasheet SERIES PRODUCTS contact
Description
The MX944-1D explosion-proof 5G router adopts industrial-grade material selection, design, and craftsmanship to ensure robust communication under extreme conditions and strong interference conditions. It is a router that supports multiple Internet access (Ethernet/WIFI client/4G/5G/ NBIoT), an IoT gateway device with a variety of local data access (5G/1000M Ethernet) full-stack intelligent protocols. The device is loaded with WAN communication, VPN tunnel, WIFI LAN and other functions, and provides customers with open source codes adapted to various devices to realize the
seamless Provide professional wireless communication for industry, transportation, electric power and other industries.
MX944-1D explosion-proof 5G router adopts high-performance industrial-grade MIPS communication processor, with embedded operating system as the software support platform, the system integrates a full range of communication protocols from logical link layer to application layer, and supports VPN (PPTP, L2TP) , IPTABLE firewall, static and dynamic routing, PPPOE, DHCP Server and DHCP Client, DMZ host, WEB configuration, support APN/VPDN, etc. It supports automatic dial-up after power-on, automatic maintenance of communication links, and hardware-level watchdog WDT protection to ensure that the device is always online.
Features
- Intelligent anti-dropping, support online detection, online maintenance, automatic redialing when disconnected, to ensure that the device is online for a long time
- Support network link backup, seamlessly switch to wireless network when wired disconnection, and can automatically detect wired recovery
- Cloud remote platform management, remote upgrade and remote configuration
- Support VPN security tunnel function, including PPTP, L2TP
- Support 2.4G wireless client, wireless AP function [optional]
- Complete and robust router functions, supporting multiple Internet access methods: dynamic IP, static IP, PPPoE
- Support IPTABLES firewall, secure network protocol
- Support dynamic DDNS: support peanut shell, dyndns and other domain name service providers
- Convenient and easy-to-use CONSOLE and SYSLOG system diagnosis and debugging functions
- Support serial port local TFTP, web software upgrade
- Explosion-proof grade: Ex dⅡC T6 Gb/Ex tD A21 IP68 T80℃
- Industrial-grade power supply: wide-voltage power supply design, the power supply range is DC6-36V /3A optional, built-in power reverse protection
- Professional-grade MIPS_880Mhz dual-core high-performance embedded processing; with 32 KB D-Cache, cache data, speed up high-speed data access; with 64 KB I-Cache, high-speed instruction cache, strengthen instruction processing speed
- Industrial-grade wireless CPE: using industrial-grade wireless modules, strong anti-interference, stable transmission
- Produced with strictly screened industrial-grade components
- UIM/SIM card ESD protection: 1.8V/3V standard push rod user card interface, built-in 15KV ESD protection
- Independent hardware watchdog, effectively guarantee the stable operation of the system
Specification
| internet connection | internet access | APNs, VPDNs |
| access authentication | CHAP/PAP/MS-CHAP/MS-CHAP V2 | |
| network format | Support NR, LTE, WCDMA(HSPA+), EDGE, GPRS | |
| LAN protocol | Support ARP, Ethernet | |
| WAN protocol | Support static IP, DHCP, PPPoE | |
| Network protocol | IP application | Support DHCP server/client, domain name DDNS, Telnet, SSH, HTTP |
| IP routing | Support static routing, IGMP Proxy | |
| cyber security | firewall | Stateful Packet Inspection (SPI), Defense against Denial of Service (DoS) Attacks |
| Filter multicast/ping probe packets, access control list (ACL) | ||
| Support NAT, PAT, DMZ, port mapping, virtual server | ||
| Data Security | Support L2TP, PPTP | |
| other technologies | Support ARP protection attack, DMZ (demilitarized zone), MAC address filtering | |
| reliability | Link online detection | Send heartbeat packet detection, automatic connection when disconnected |
| Embedded watchdog | Equipment operation self-inspection technology, equipment operation fault self-repair | |
| WLAN | protocol standard | IEEE 802.11b/g/n |
| security features | Open system, shared key, WPA/WPA2 authentication, WEP/TKIP/AES encryption | |
| Operating mode | AP, Client working mode | |
| intelligent | DTU function | Support TCP, UDP transparent transmission mode, TCP Server mode |
| network management | configuration method | Support local or remote HTTP, Telnet, SSH methods |
| Upgrade method | Support local or remote WEB, TFTP | |
| log function | Support for local syslog | |
| SMS function | Status query, restart |
Technical Parameters
| wireless parameters | WIFI basic parameters | Working frequency band: 2.4GHz |
| Channel selection: channel 1 - 13; 2.4GHz | ||
| Optional wireless mode: 11b/g/n, 11bg mixed, 11bgn mixed(Def) 2.4G | ||
| Speed: 300Mbps (Max) | ||
| 2.4G Power: 14dB (±2dB) | ||
| EVM: 35dB (±2dB) HT20 HT40 | ||
| number of connections | Up to 128 users can access at the same time | |
| security parameters | Support 64/128 bit WEP encryption | |
| Support WPA-PSK/WPA2-PSK authentication type Support TKIP, CCMP/AES encryption algorithm | ||
| LTE module parameters | Working frequency band: 1.8G: 1785MHz~1805MHz | |
| Channel range: 1.8G: Band 59, 54200~54399, Band 62, 65200~65399 | ||
| Bandwidth: Bandwidth supports 1.4MHz, 3MHz, 5MHz, 10MHz, 15MHz, 20MHz | ||
| Maximum transmit power: private network frequency band: +23±2dBm | ||
| Secondary amplification: support external power amplifier | ||
| Transmission distance | Unobstructed/open outdoors, coverage up to 100 meters | |
| hardware parameters | CPU | MIPS CPU, MT7621DAT dual-core main frequency 880Mhz |
| storage | 128Mbits SPI Flash | |
| Memory | 1024Mbits DDR3 【chip built-in】 | |
| Appearance and size | Product Dimensions | 294mm*229mm*97mm |
| Operating temperature | -40ºC~80ºC | |
| Storage temperature | -40ºC~85ºC | |
| humidity | 95% (no condensation) | |
| interface parameters | WAN port (LAN1) | 1 10/100/1000M self-adaptive WAN port, built-in isolation, supports automatic flip (Auto MDI/MDIX), |
| LAN port (LAN2) | 1 10/100/1000M self-adaptive LAN port, support auto flip (Auto MDI/MDIX); | |
| USB port | Built-in USB3.0 port | |
| indicator light | 2 LAN port lights (at the network cable port) | |
| Antenna interface | Standard 4 antenna ports | |
| USIM card interface | 1 SIM card holder (built-in standard MicroSIM card holder) | |
| power interface | Standard DC interface 6V-36V /3A | |
| power consumption | About less than 20W |
