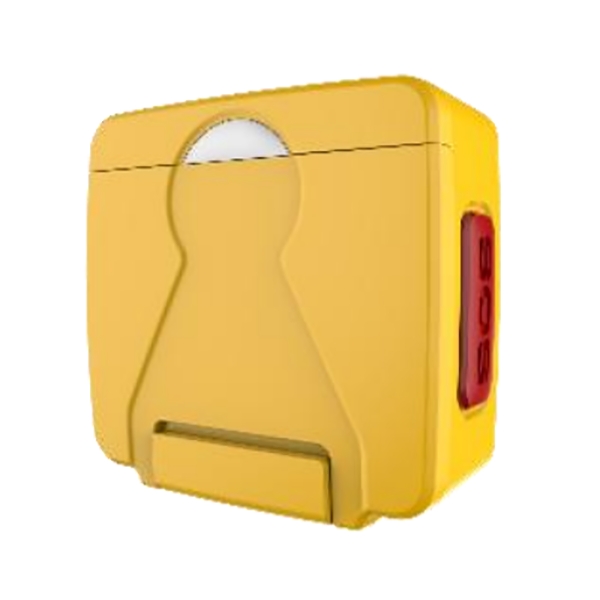

UB100 Helmet Type Positioning Label
UB100 Helmet Type Positioning Label
Category: MAXON Positioning System
Datasheet SERIES PRODUCTS contact
Description
The UB100 safety helmet positioning tag is suitable for multi-type positioning application scenarios installed and fixed on the safety helmet, and can realize one-button SOS call for help and buzzer alarm prompt.
Features
- Label positioning accuracy up to 30cm
- Positioning frequency 0.1Hz ∽ 1Hz adjustable
- Rechargeable battery, 20 days (1Hz)
- One-key SOS to call for help, one-key to cancel the alarm
- Built-in UWB chipset, buzzer prompt
Technical specifications
| project | describe | |
| Electrical parameters | battery working time | 20 days (1Hz) |
| RF parameters | Antenna type | built-in antenna |
| performance parameters | UWB communication distance | ≥300m |
| Highest Positioning Accuracy | 30cm | |
| Location frequency | 0.1 ∽ 1Hz adjustable | |
| Alarm function | One-button SOS call for help, buzzer alarm prompt | |
| Protection performance | degree of protection | IP67 |
| Fire-proof level | UL94-V0 | |
| Anti-static level | IEC61000-4-2 standard level 4 | |
| Environmental parameters | Operating temperature | -20°C ∽ +75°C |
| storage temperature | -40°C ∽ +80°C | |
| Working humidity | 5% ∽ 95% (non-condensing) | |
| physical parameters | size | 52.4*49.7*21.4mm |
| weight | ＜65g | |
| Mounting holes | 3 | |
| LED indicators | Power, working status and alarm indicator lights | |
Application Scenario
Adapt to one-dimensional linear positioning scenarios such as single pilot tunnel, multiple pilot tunnels, long tunnels, and pipe galleries.
It can be applied to drones, AGV, industrial manufacturing, public security and justice, material warehouses, power plants, construction sites, petrochemical and other two-dimensional positioning scenarios.
