1-Port Serial Device Server MX3210

1-Port Serial Device Server MX3210


Category: Serial Device Server


contact



1-port Serial Device Server

◆Auto-detecting 10/100 Mbps Ethernet

◆Built-in 15 KV ESD protection for all serial signals.

◆Supports various operation mode: COM port redirector (Virtual COM port).

◆Versatile socket operation modes: TCP Server, TCP Client, UDP, and Ethernet Modem

◆Supports multi-access features: allows maximum of six hosts to access one serial port simultaneously

◆Pair Connection mode for connecting two serial devices over a network without a PC

◆Supports DNS(TCP Client Only)

◆Supports SNMP MIB-II for network management

◆Configuration via web/Telnet/serial console

◆Support to auto recovery after power and network break

◆Support to monitor the status.It can monitor the each orifice receives and dispatches through the website

Product Description

MX3210 serial device server (brief name: serial device server) is the independent development networking product of our company about RS-232/485/422 serial orifice terminal equipment.

The MX3210 series product adopts 32bit ARM MCU and combines efficiently embedded system and make equipment run more safe and stable.

The MX3210 series serial device server none needs heavy investment to replace or upgrade.

It can let the original RS-232/485/422 serial industry control equipment immediately have a network to unite capability with each other, provide efficient, safe, stable data gateway for the serial orifice data information.

The MX3210 series product was applied to communication and control realm extensively, such as electric power supervision, engine room supervision, PLC, intelligence electric meter, gas meter and biological recognition device and reader...etc.,

It is the connectivity bridge between serial orifice equipment and TCP/IP Ether network.

 Specifications



1 port

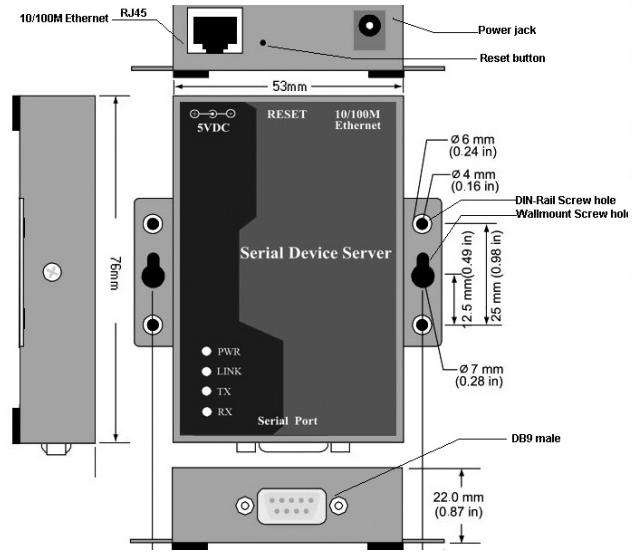

Structure



1 port a



 Model



Model Number

Description

Power

MX3210D-A

1-port RS-232 Desktop Serial Device

DC 9-40V

MX3210D-C

1-port RS-232/422/485 Desktop Serial Device

DC 9-40V

MX3210D-AB

1-port RS-232/485 Desktop Serial Device

DC 9-40V

MX3210M

1-port RS-232 Desktop Serial Device,with

Electromagnetic isolation

DC 9-40V
