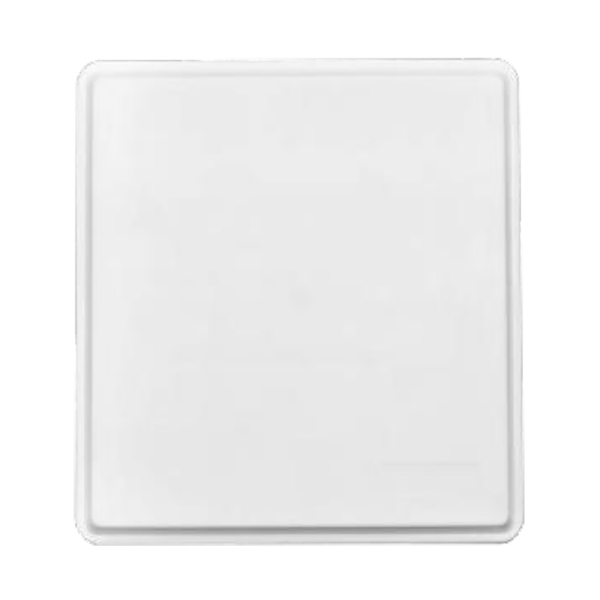

Point to Point industrial Wireless 802.11ax Bridge 5km PTP Transfer MX6011B-DI19

Point to Point industrial Wireless 802.11ax Bridge 5km PTP Transfer MX6011B-DI19


Category: Industrial IP68 Outdoor Wireless Bridge


Datasheet SERIES PRODUCTS contact

Description

MX6011B-DI19 Outdoor 802.11ax High Performance Wireless Bridge supports 802.11ax 4x4 MIMO technology, the maximum transfer rate can be 4800Mbps, with the transmission distance reaching more than 5 kilometres. It is suitable for high-bandwidth and low-latency network data transmission applications and can be widely used in security monitoring, agricultural broadband coverage, operator base station's last-mile deployment and other scenes.

It can provide customers with a stable wireless signal and ensure the good experience of stable, high-quality and convenient network services. It also incorporates several leading core achievements to make sure stable, reliable coverage and high-throughput performance in all scenes.

Its structural design fully considers the applications in extreme industrial environments and is designed to meet the IP68 waterproof standard, making it an ideal choice for industrial-grade Wireless Bridge.

Features

  • Support IEEE 802.11an/ac/ax
  • Maximum transfer rate 4800Mbps
  • Intelligent wireless multimedia optimization technology, giving priority to the transmission stability of voice and video
  • Support web management, making equipment installation and maintenance more convenient
  • Support 802.3bt protocol (POE+)
  • Support pole-mounted installationing, horizontal and vertical position adjustable
  • Built-in 19dBi directional antenna, ultra-long distance transmission
  • IP68 waterproof level is suitable for a variety of environments
  • *Wireless controller needs to be purchased separately

Specification

Hardware
Shell metal + PC
Host size (mm) 370mm*370mm*95mm
Net weight (kg) 8500g
Installation pole-mounted
Waterproof IP68
Antenna Gain 19dBi
Antenna type built-in directional antenna
Transmission distance 0~5km
Power supply mode 48V 1.25A POE
Maximum power consumption (W) ≤30W
Maximum transmit power 26dBm
Connector (WAN) 10/100/1000Mbps/2.5Gbps
Working temperature -40℃~70℃/-40~158℉
Storage temperature -40℃~85℃/-40~185℉
Working humidity 5%~95%RH non-condensing
Surge immunity POE/GE: common mode 4KV, differential mode 2KV
Electrostatic discharge immunity Contact discharge: 6KV, Air discharge: 8KV
Installation kit 1 x RJ45 M22 PG waterproof connector
1 x Mounting Bracket Kit
1 x 48V 1.25A POE Adapter
1 x AC Power Cord
1 x Product Instruction Manual
1 x Product Certificate & Warranty Card
Software
Protocol 802.11an/ac/ax
Maximum speed 4800Mbps
Frequency range 5180~5320MHz, 5745~5825MHz
Channel width 20/40/80/160MHz
Working Mode WDS Access Point, WDS Client
Security configuration WPA2-PSK, WPA3-SAE
Application Mode WDS Access Point, WDS Client
Configuration management support web configuration, support AC remote management, support SNMP management
Ethernet software features support IPv4/IPv6 dual protocol stack;DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMP v2c/v3, Syslog, TCP/IP, SSH, UDP, VLAN
Dynamic frequency selection support intelligent channel analysis & automatic optimal channel selection;support 5GHz DFS
Intelligent Bandwidth Rate Limiting Support IP and MAC-based upstream and downstream rate limiting
IoT expansion reserved UART interface to support IoT application expansion such as Bluetooth, ZigBee, UWB, etc.
Others Scheduled restart, QoS, Watchdog
Application wireless video surveillance (traffic, urban, public security, oil and gas pipelines, forest fire prevention and security, residential and other key areas monitoring);Wireless video/data transmission and wireless coverage in railway, transportation, power and other industries;Operator Main Wireless Network Construction;Wireless network coverage of rural informatization construction
